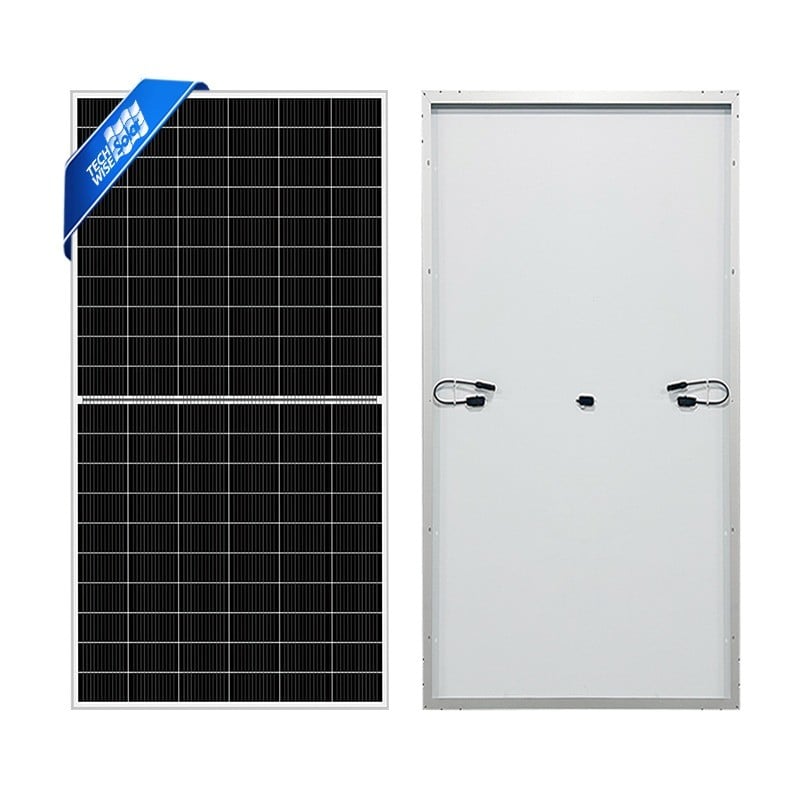

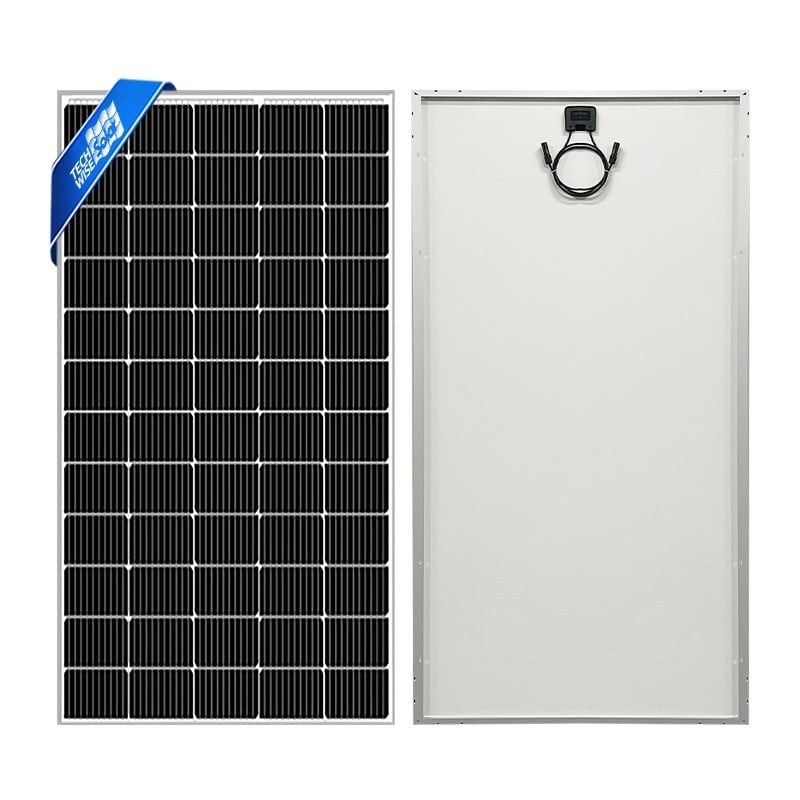

Sun-Pursuit Pro TW-575-600HP-1

Name: Sun-Pursuit Pro TW-575-600HP-1
Brand: Techwise Solar
SKU: 64070
Price: 0.08200 USD
Availability: InStock

Techwise Solar Technology Co., Ltd.

価格：

価格 ¥12.2 / Wp より

Price / Unit
Minimum Order	1+ Pieces
Lead Time	7 日数
575W	¥7,020
580W	¥7,080
585W	¥7,140
590W	¥7,200
595W	¥7,260
600W	¥7,320

技術：	TOPCon
出力領域：	575 ~ 600 Wp
地域：	中国

メーカーに連絡する

注意：お問い合わせはTechwise Solar Technology Co., Ltd..に直接に送信されます。

説明：

High Efficiency
Lower Heat Spot Risk
Excellent Low-light Performance
0-3% Power Tolerance
PID Resistant
Resilient to Extreme Weather

倉庫:

南通

ストック：

1,000 個

倉庫所在地：	南通
型式	パワー(Wp)	ストック(個)	メーカーに連絡する
580W	580	1,000

製品情報
会社のプロフィール

製品の特徴

タイプ

単結晶

型式

575W

580W

585W

590W

595W

600W

保証制度

製品保証

12 年

出力保証

89.4%の出力を25年間保証

規定検査条件化での性能

最大出力（Pmax）

575 Wp

580 Wp

585 Wp

590 Wp

595 Wp

600 Wp

最大出力作動電圧（Vmpp）

42.34 V

42.54 V

42.72 V

42.89 V

43.07 V

43.24 V

最大出力作動電流（Impp）

13.59 A

13.63 A

13.69 A

13.75 A

13.81 A

13.87 A

開放電圧（Voc）

51.16 V

51.31 V

51.46 V

51.63 V

51.78 V

51.93 V

短絡電流（Isc）

14.36 A

14.42 A

14.48 A

14.54 A

14.6 A

14.66 A

モジュール変換効率

22.26 %

22.45 %

22.65 %

22.84 %

23.03 %

23.23 %

出力誤差 (+)

+ 3 %

JIS規定検査条件（AM 1.5, 放射照度 1000W/m², モジュール温度 25°C）

公称動作環境での性能

最大出力（Pmax）

432 Wp

436 Wp

441 Wp

445 Wp

449 Wp

452 Wp

最大出力作動電圧（Vmpp）

39.48 V

39.6 V

39.87 V

40.05 V

40.13 V

40.22 V

最大出力作動電流（Impp）

10.95 A

11.02 A

11.07 A

11.12 A

11.17 A

11.22 A

開放電圧（Voc）

48.27 V

48.4 V

48.54 V

48.69 V

48.82 V

48.95 V

短絡電流（Isc）

11.6 A

11.66 A

11.71 A

11.76 A

11.81 A

11.86 A

最大耐久温度

44±2 °C

公称動作条件（放射照度800W/m², AM 1.5, 風速1m/s,ambient temperature 20°C）

温度特性

作動温度範囲

-40~85 °C

温度係数（Pmax）

-0.34 %/°C

温度係数（Voc）

-0.25 %/°C

温度係数（Isc）

0.04 %/°C

システム統合パラメータ

最大入力電圧

1500 V

定格入力電流

25 A

その他仕様情報

外形寸法 (高さ/幅/奥行)

2278x1134x30 mm

質量

27 kg

１枚当たりのセル数

144

ガラスの厚さ

3.2 mm

構造フレームタイプ

陽極酸化アルミニウム

ジャンクションボックス保護

IP 68

コネクター

MC4

ケーブル断面

4 mm²

ケーブルの長さ

300 mm

PDF

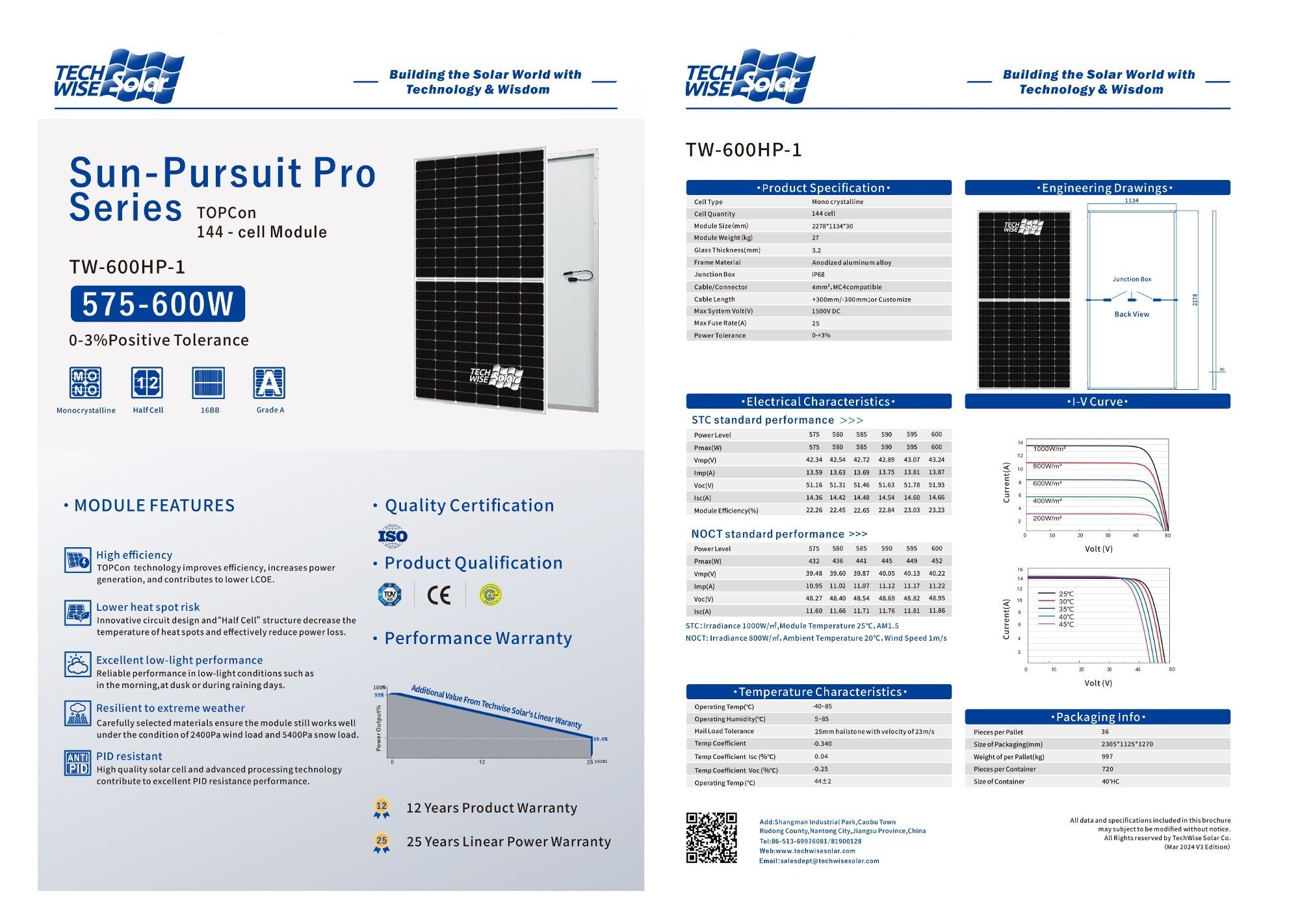

メーカーのPDFをダウンロードします

Techwise Solar — Building the Solar World with Technology & Wisdom

Core Advantage

Advanced Technology
Cost-effective
Quality Assurance
Fully Automated Production Line
Professional ODM/OEM

High Efficiency PV Modules

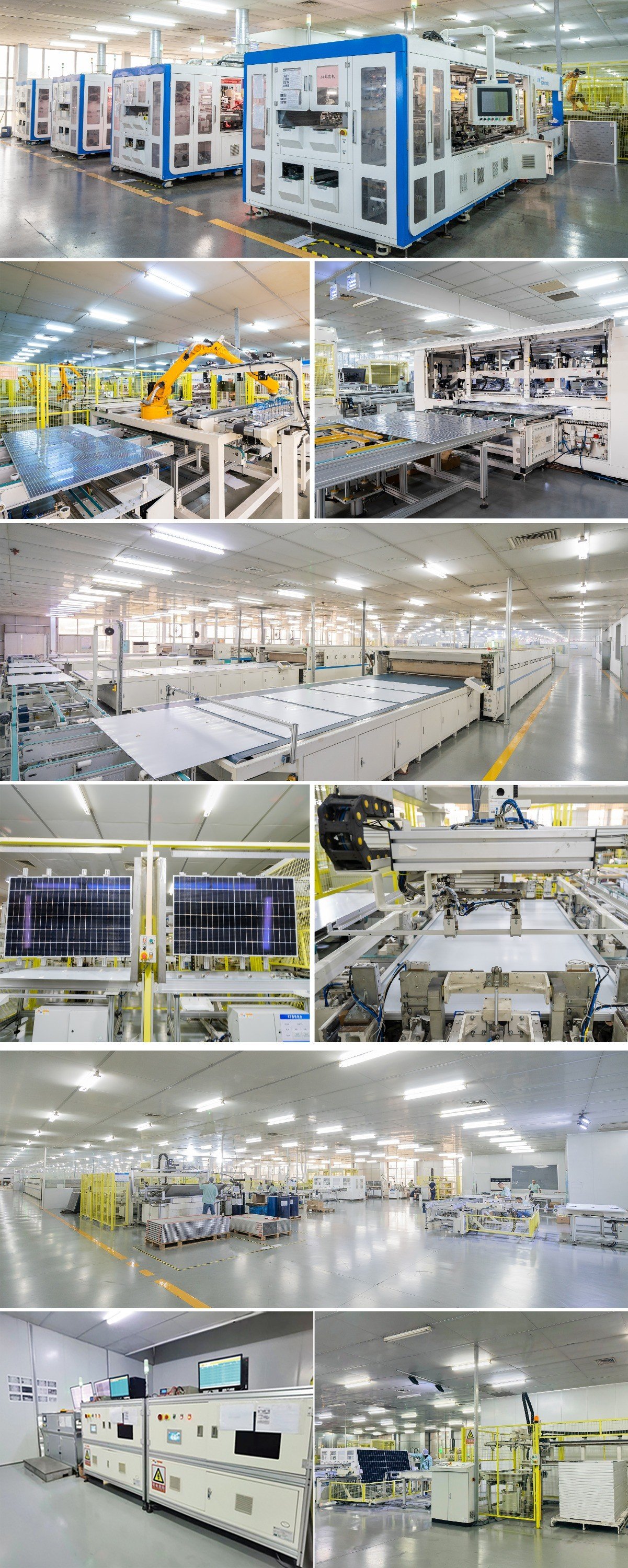

Automatic Production Line

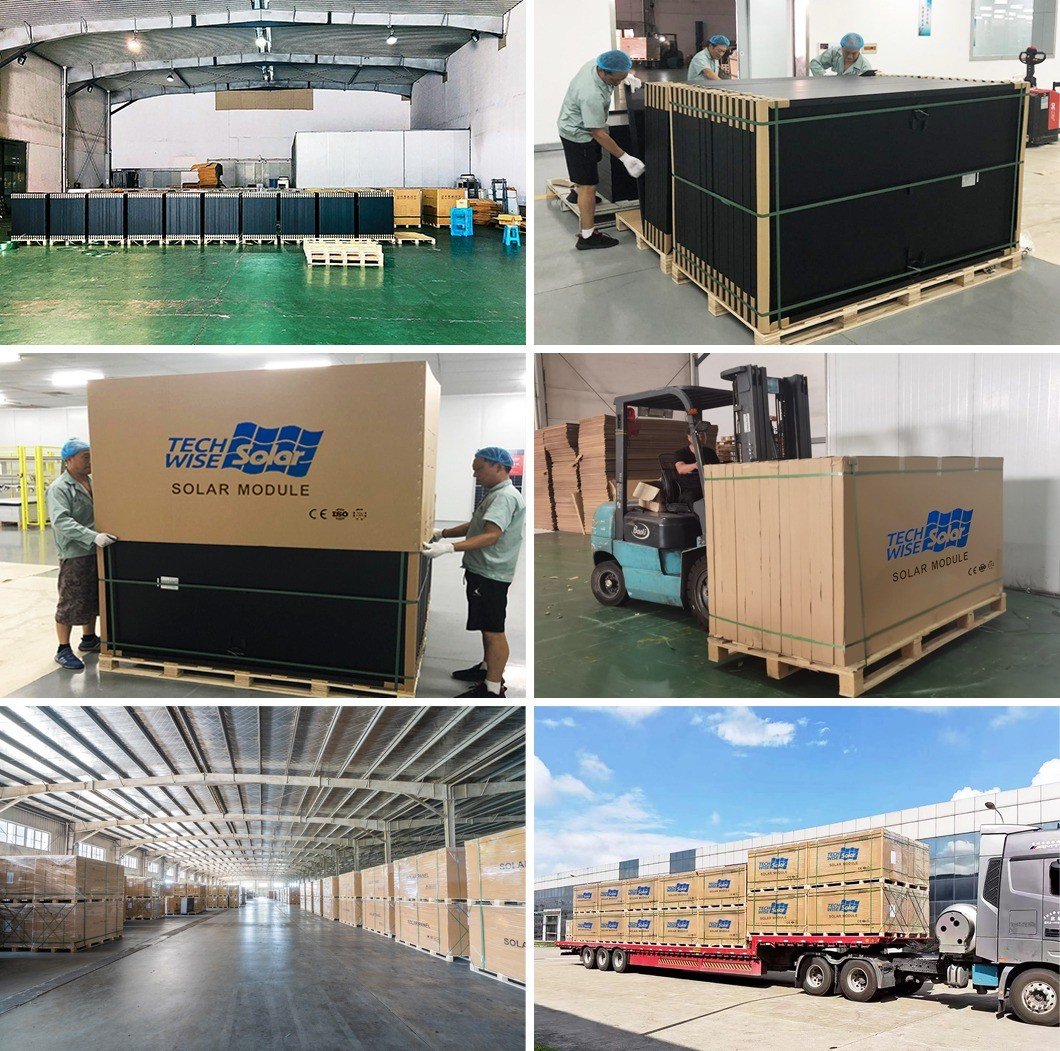

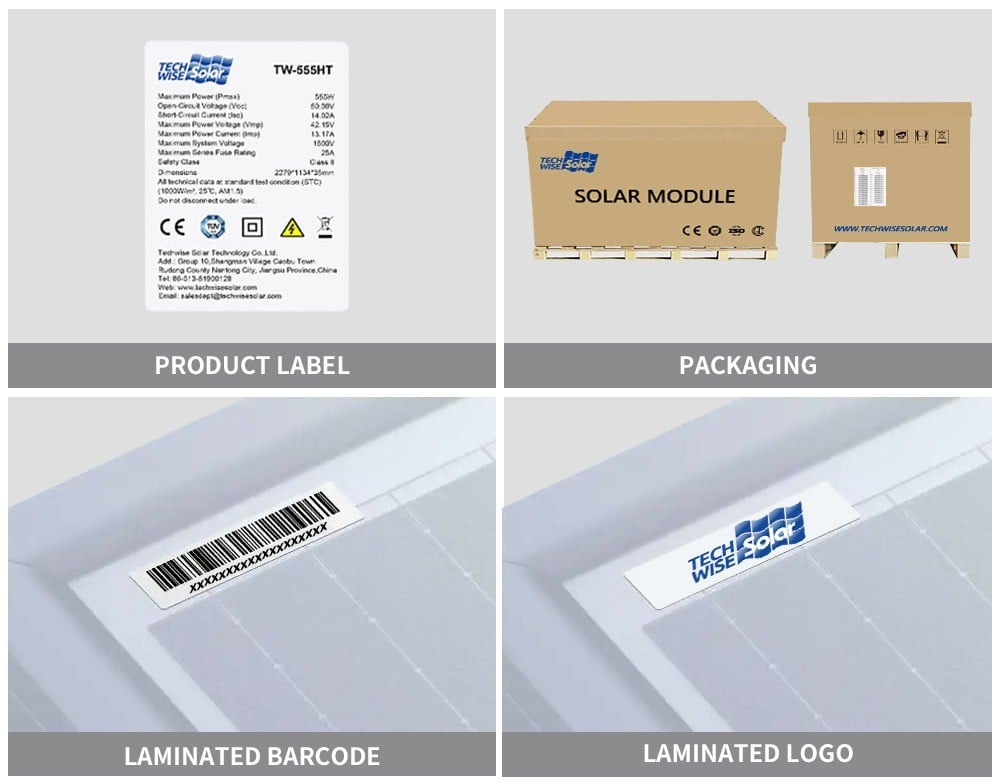

Packing & Delivery

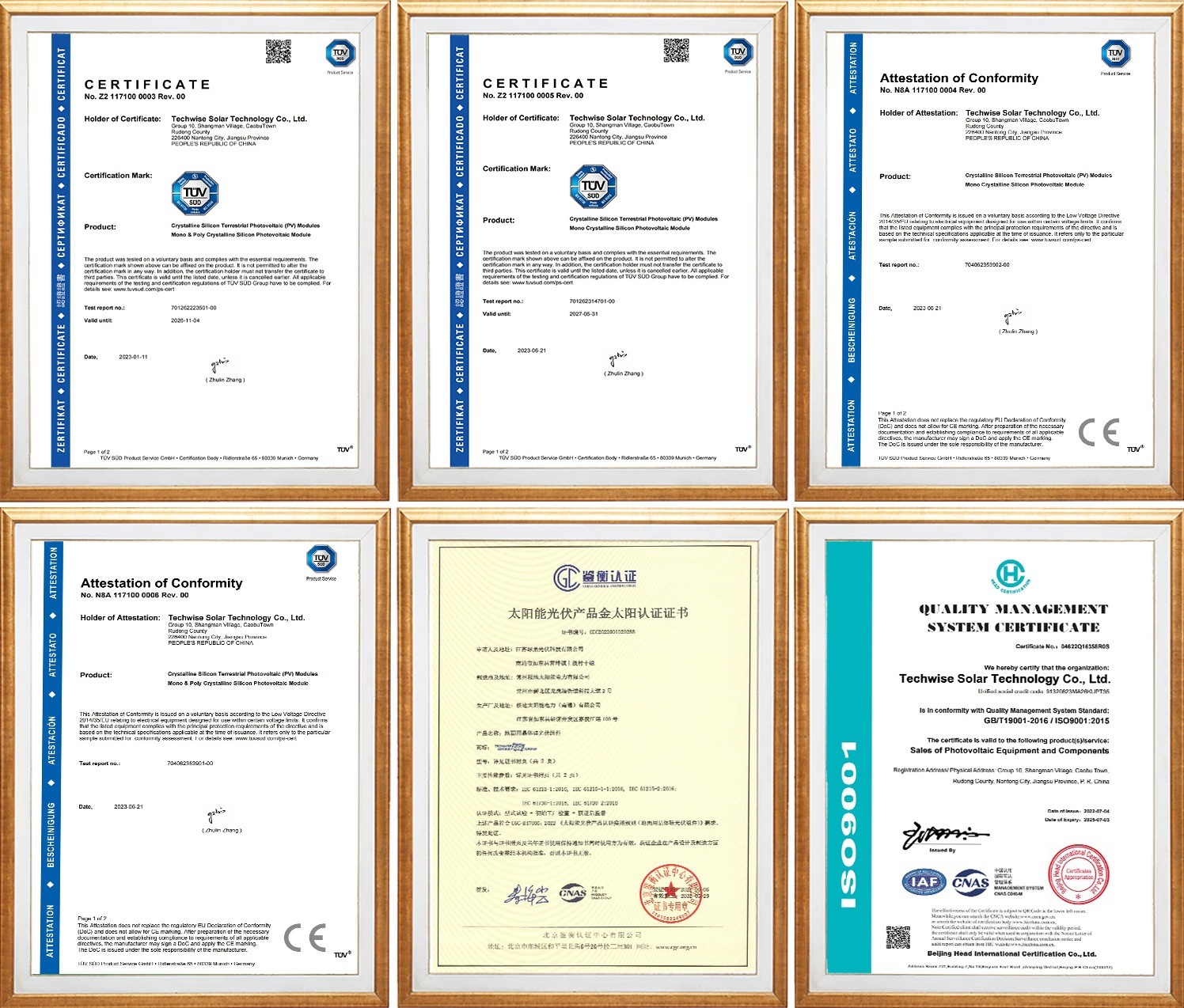

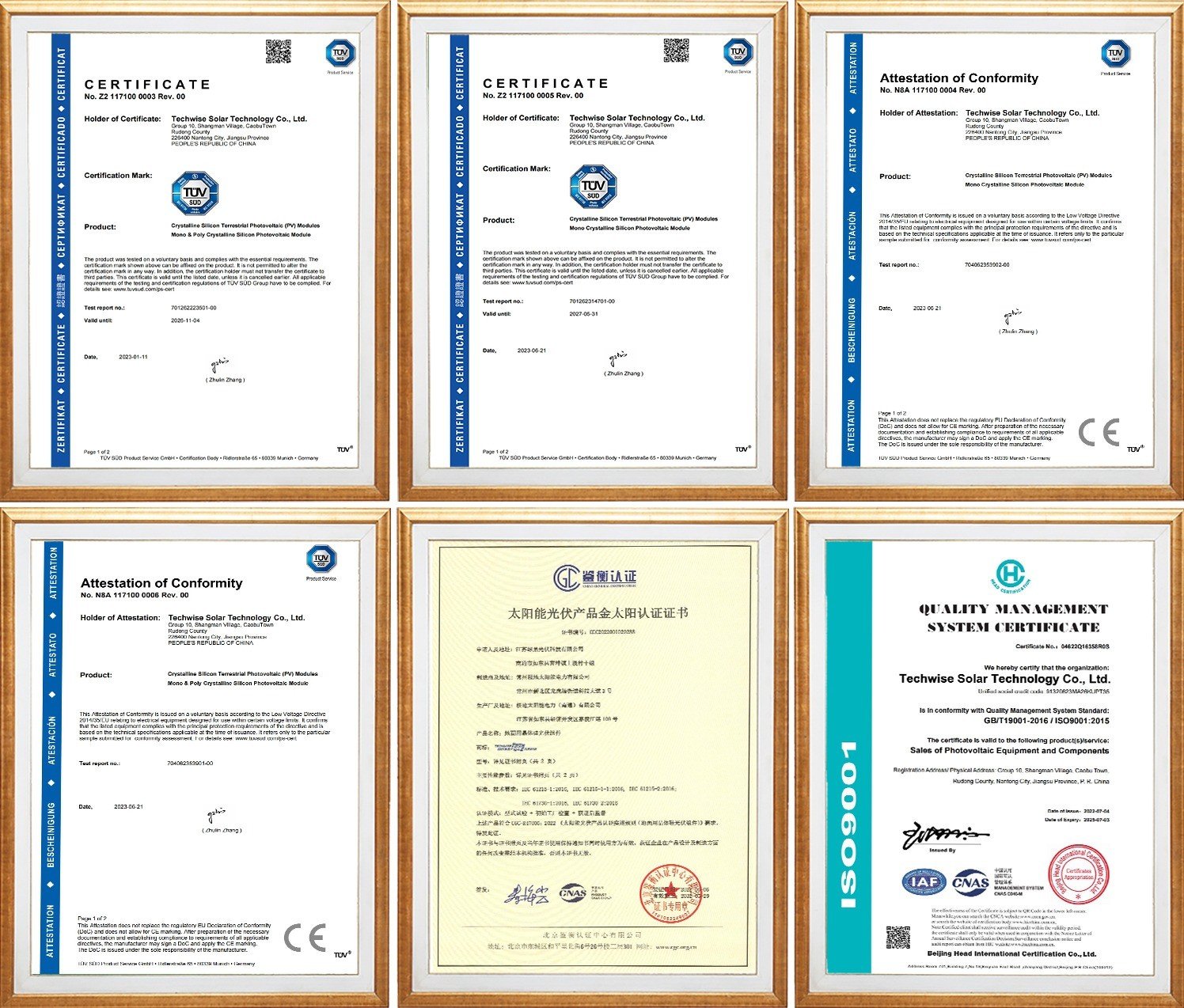

Product Certification

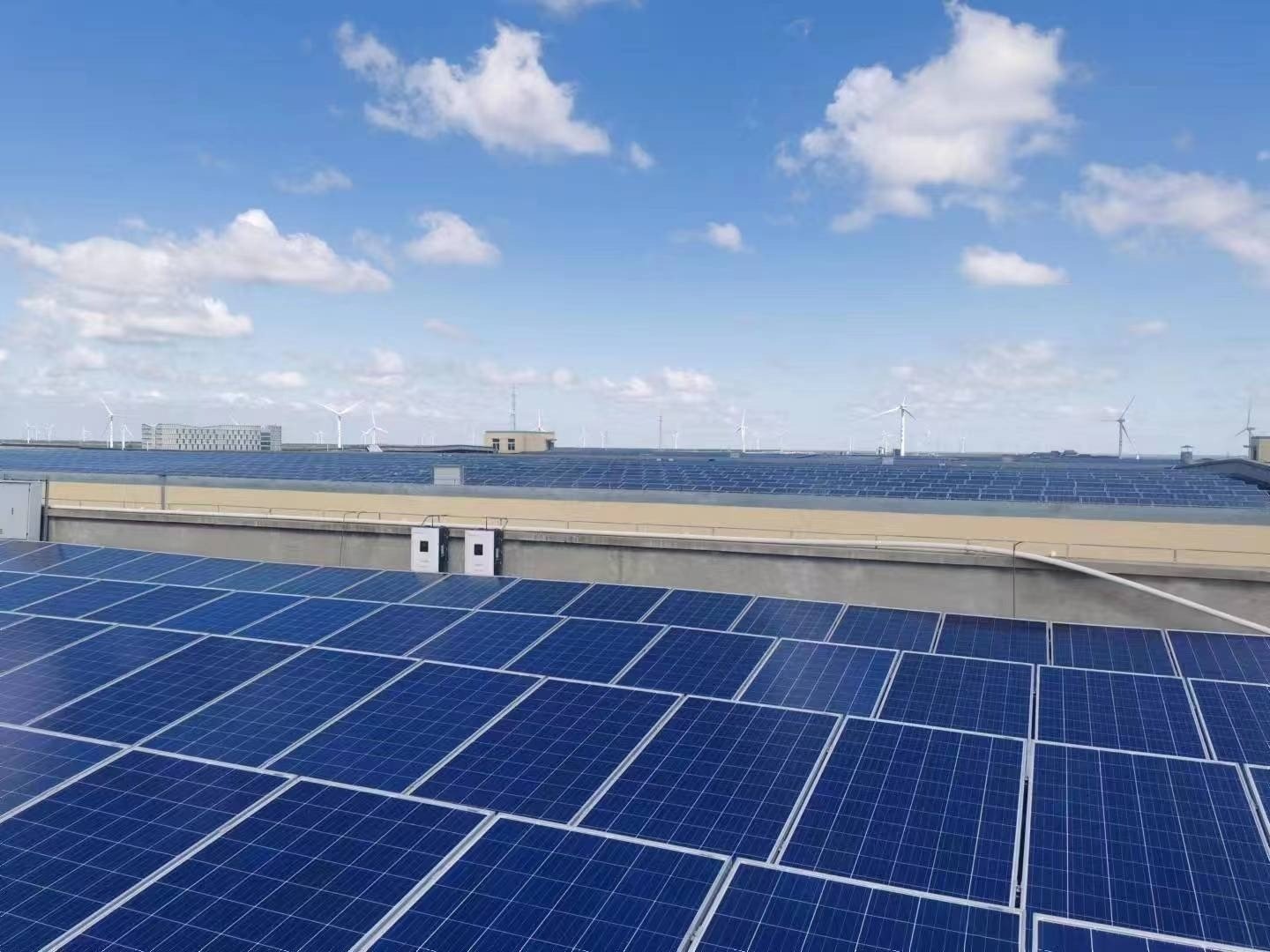

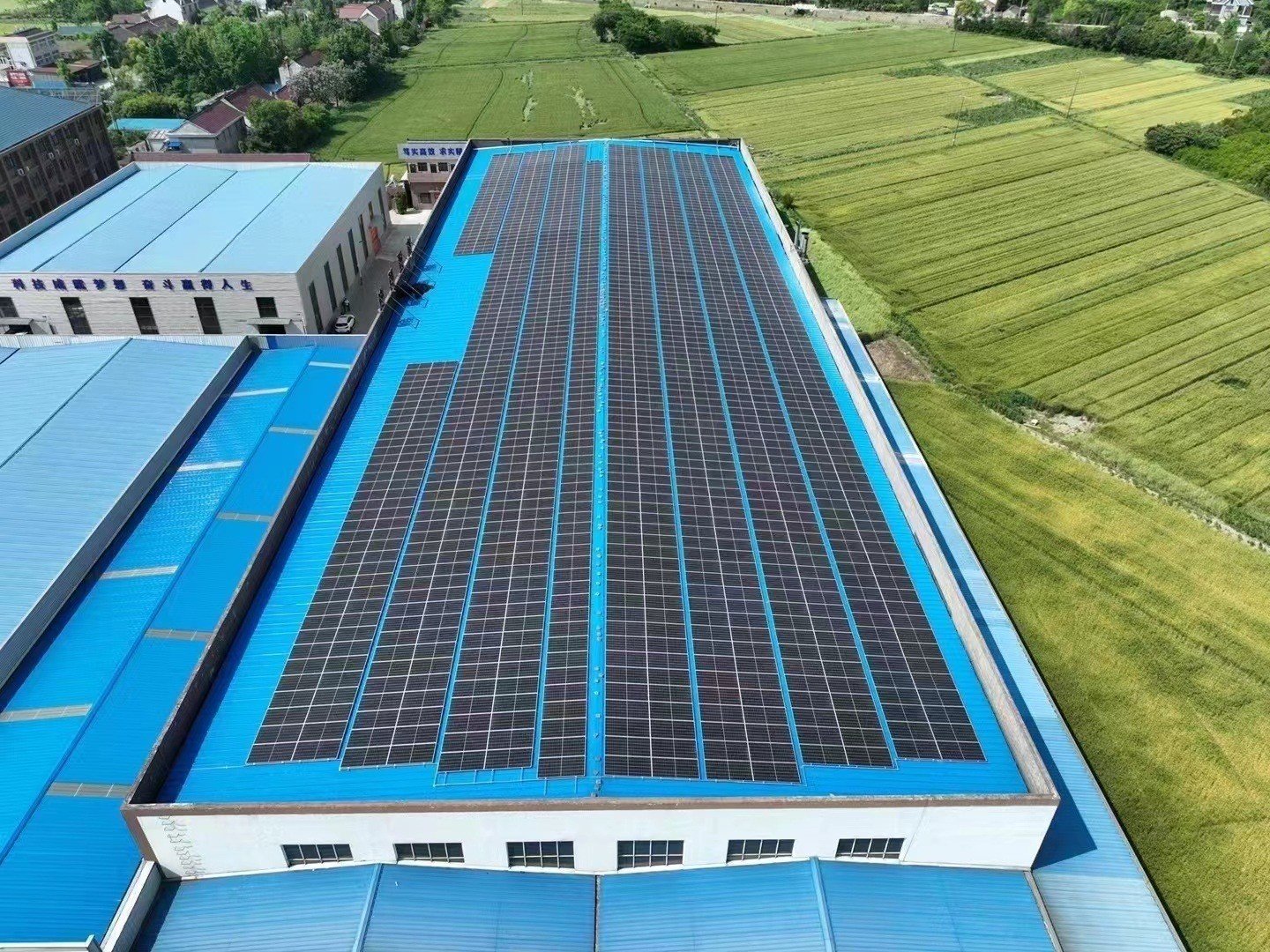

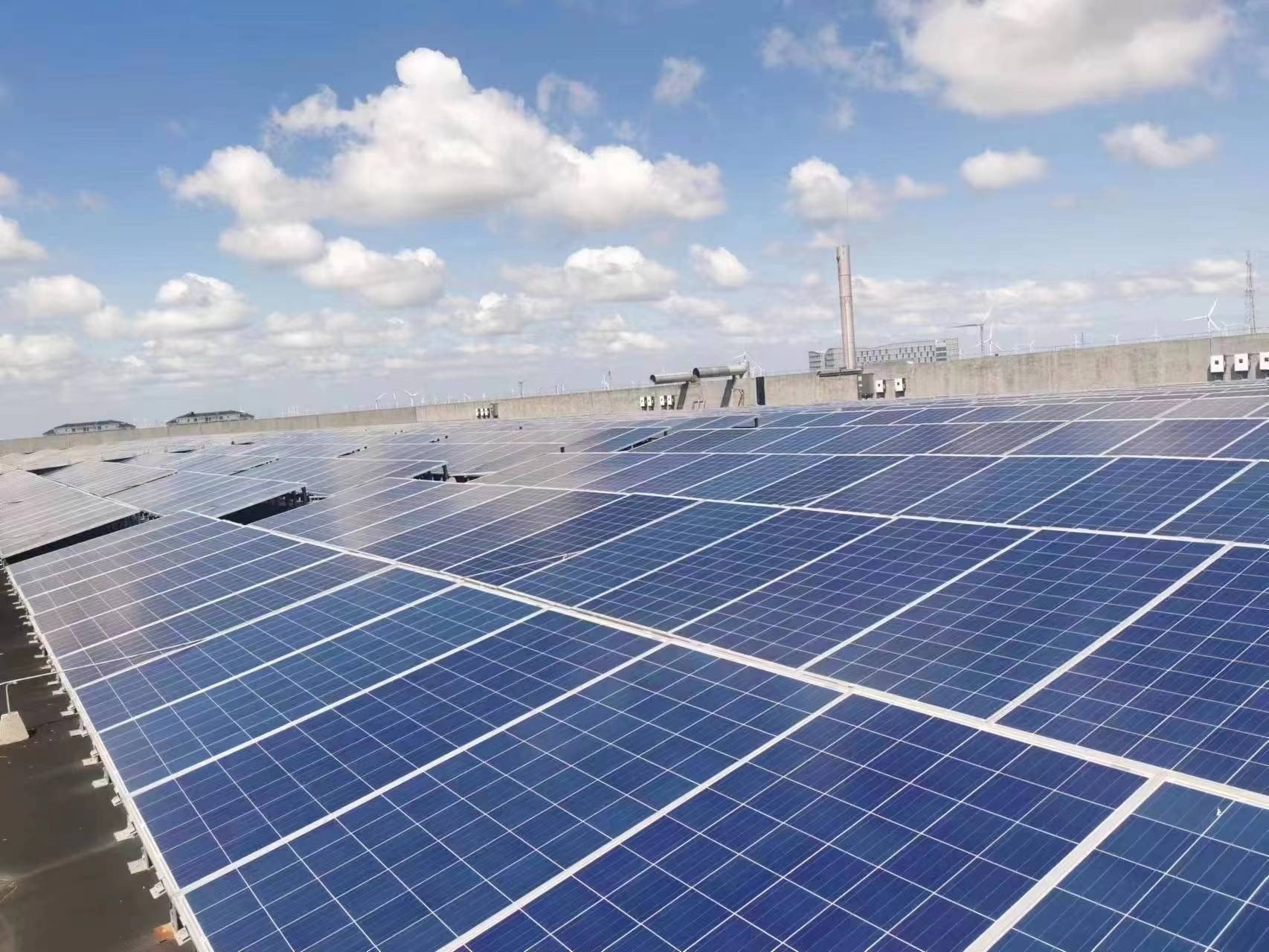

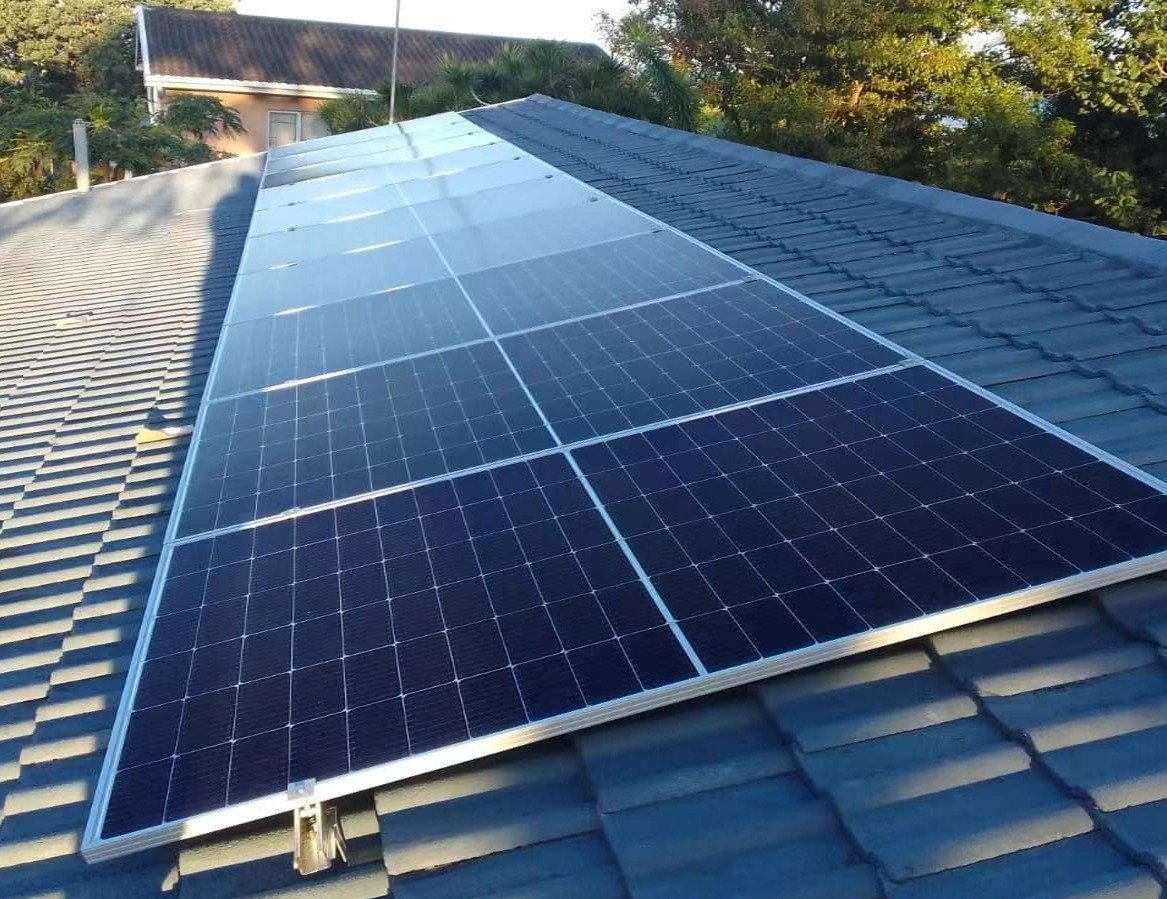

Project Case

2023 SNEC International Exhibition In Shanghai

2024 Philippines Energy Exhibition

2024 SNEC International Exhibition In Shanghai

OEM & ODM Services

Techwise Solar Technology Co., Ltd.

: Click to show company phone
: www.techwisesolar.com
: 中国
: Shangman Industry Park, Caobu Town, Rudong County, Nantong, Jiangsu, 226400

スタッフナンバ―： 200

メーカーに連絡する

注意：お問い合わせはTechwise Solar Technology Co., Ltd..に直接に送信されます。

結晶系

生産高 (MW)/： MWp

単結晶，多結晶

パワーレンジ(Wp)： 40-670

便利な連絡先

Catherine Chen

Tony Shen

Wendy Yu

Sara Lu

企業説明

Techwise Solar Technology Co., Ltd. is a distinguished enterprise that specializes in offering cutting-edge solutions for solar power generation, leveraging the potential of solar energy to the fullest. We take pride in being a leading provider of new energy solutions, seamlessly integrating research, production, marketing, construction, operation, and maintenance to cater to the diverse needs of our clientele.

We have multiple new intelligent production lines that can realize fully automatic production like lossless laser cutting, millimeter-level tack soldering, automatic type-setting, intelligent equipment testing, etc. With an annual production capacity of 1GW, our current production lines cover the production of solar panels including cell sizes of 157, 158, 166, 182, and 210mm. We have realized the production of PERC, TOPCon, and Bifacial glass panels. We can also provide customized service. We have achieved certificates like TUV, CE, ISO, CGC, etc.

We carefully select raw materials and suppliers, strictly obeying the product quality standard. By virtue of excellent product quality, continuous technology innovation, and professional service, Techwise Solar has been approved by both domestic and overseas customers. We have been keeping long-term cooperation with Tier 1 brands universally, providing professional ODM/OEM service, and won a good reputation in the solar industry.

製品ビデオ

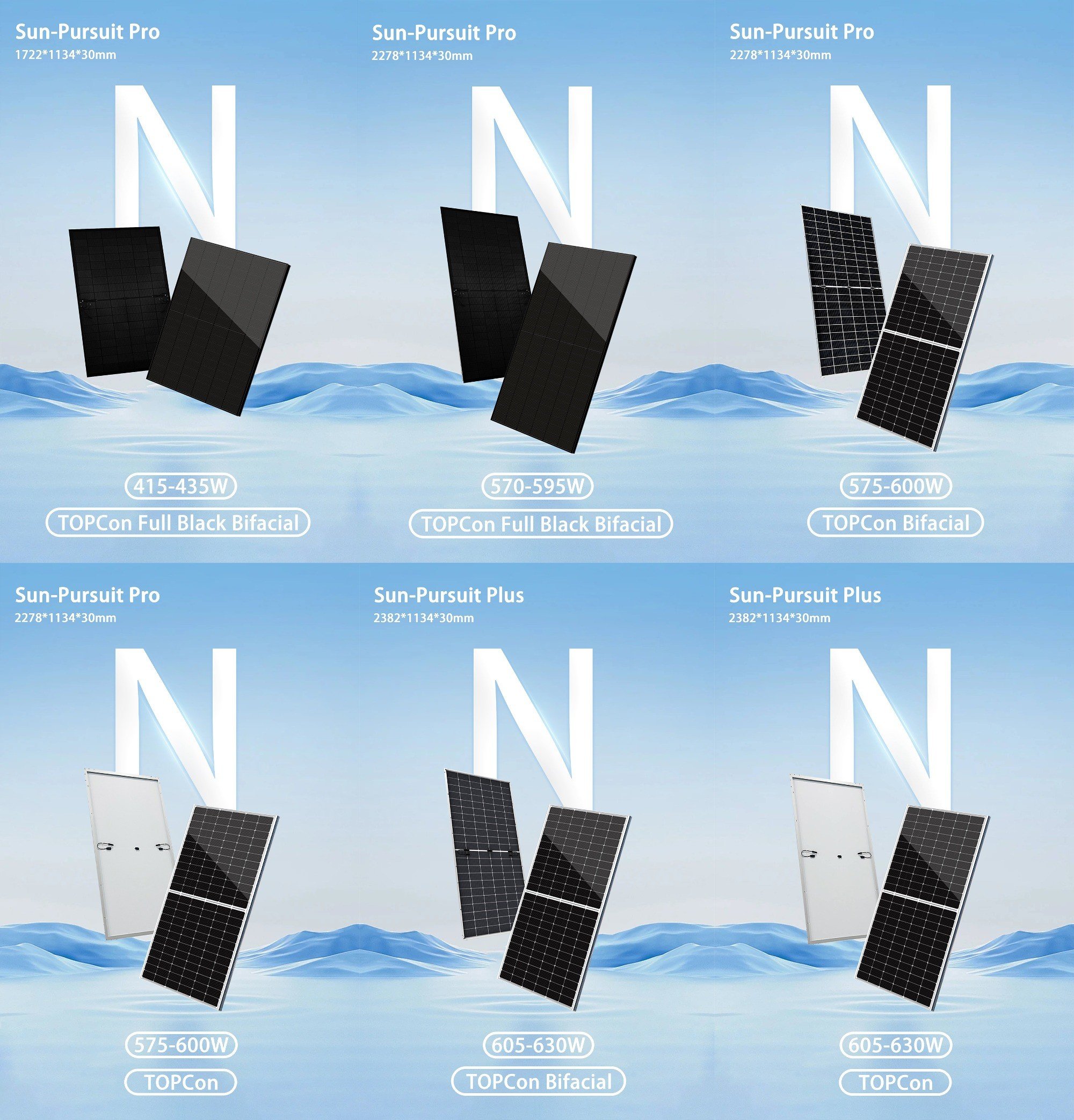

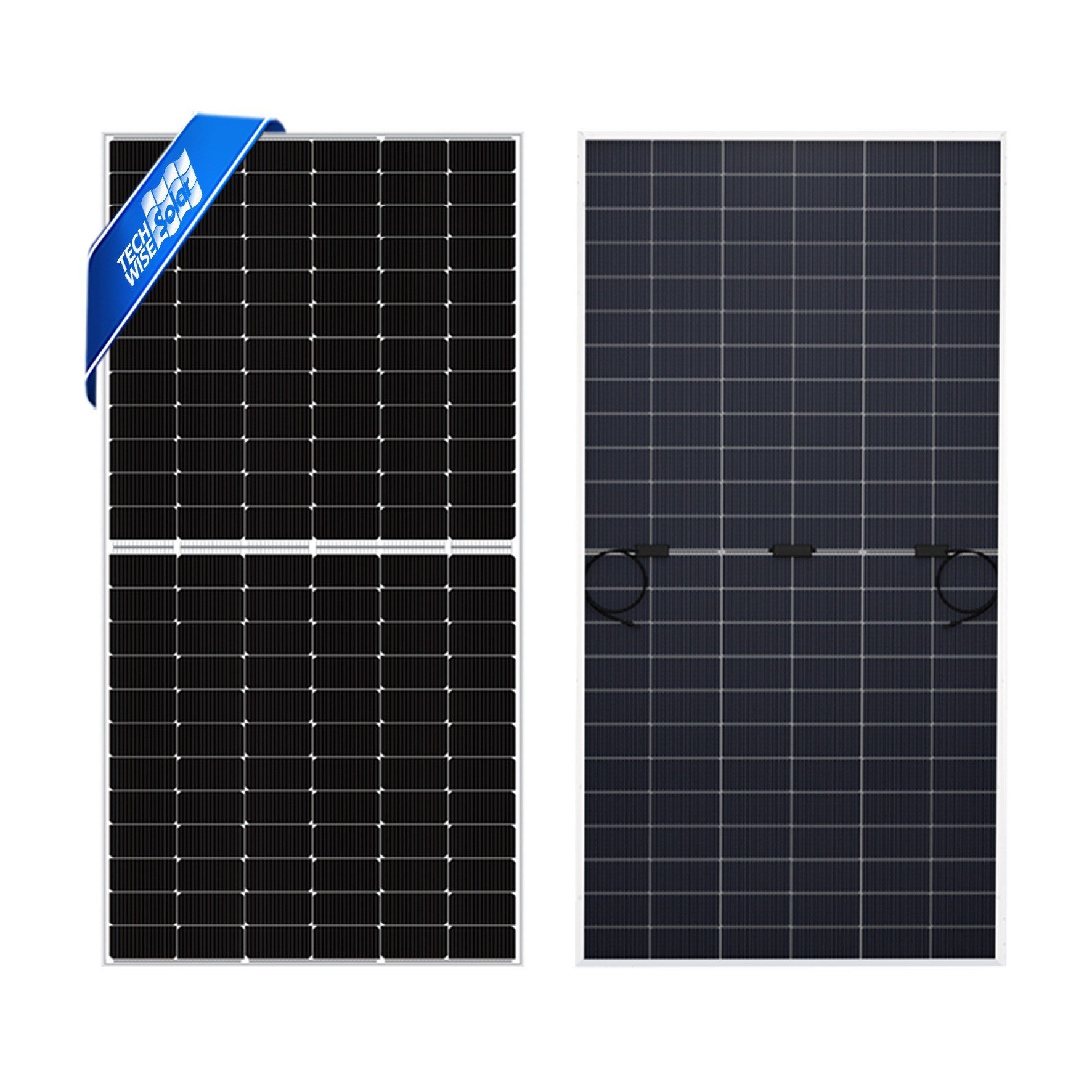

Sun-Pursuit Pro TW-575-600HP-1太陽電池パネル

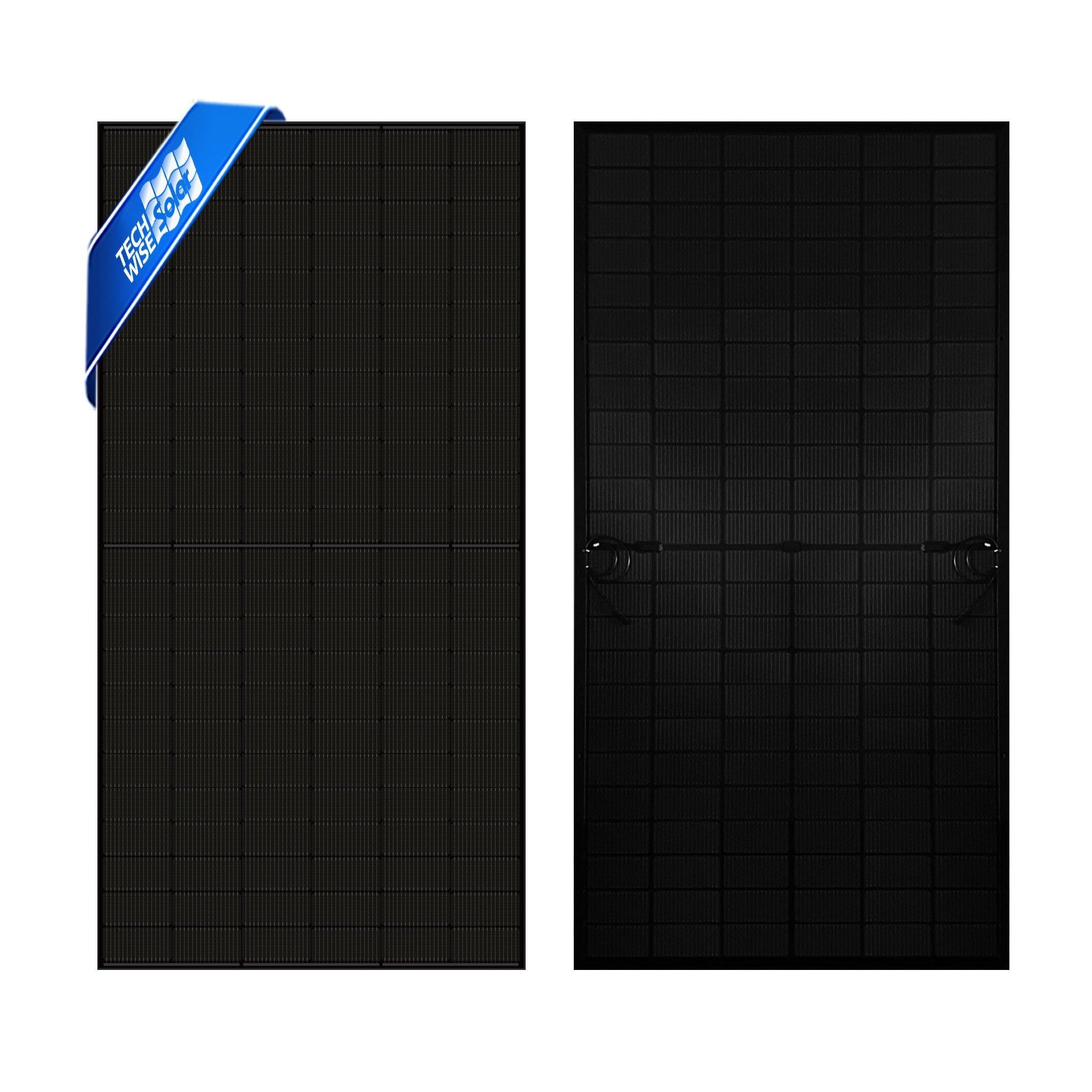

Sun-Pursuit Pro TW-570-595HDB-1太陽電池パネル
