SP-N16/144HG 570-600W

Name: SP-N16/144HG 570-600W
Brand: Solar N Plus
SKU: 59519
Price: 0.64000 CNY
Availability: InStock

Solar N Plus New Energy Tech. Co., Ltd

価格：

価格 ¥12.5 / Wp より

Price per piece
Minimum Order	1+ 個
570	¥7,130

技術：	両面受光型, TOPCon
出力領域：	570 ~ 600 Wp
地域：	中国

メーカーに連絡する

注意：お問い合わせはSolar N Plus New Energy Tech. Co., Ltd.に直接に送信されます。

説明：

The genuine manufacturing expert of TOPCon technology
A1 high rating from Dun & Bradstreet
Double warranty and the world-famous third-party warranty
High efficiency of 23% with higher bifaciality
High mechanical strength & lower temperature coefficient
Ideal for various projects

製品情報
会社のプロフィール

製品の特徴

タイプ

単結晶

型式

570

575

580

585

590

595

600

保証制度

製品保証

15 年

出力保証

87.4%の出力を30年間保証

規定検査条件化での性能

最大出力（Pmax）

570 Wp

575 Wp

580 Wp

585 Wp

590 Wp

595 Wp

600 Wp

最大出力作動電圧（Vmpp）

44.75 V

44.95 V

45.15 V

45.35 V

45.555 V

45.75 V

45.95 V

最大出力作動電流（Impp）

12.74 A

12.79 A

12.85 A

12.9 A

12.96 A

13.01 A

13.06 A

開放電圧（Voc）

52.2 V

52.4 V

52.6 V

52.8 V

53 V

53.2 V

53.4 V

短絡電流（Isc）

13.47 A

13.52 A

13.57 A

13.62 A

13.67 A

13.72 A

13.77 A

モジュール変換効率

22.1 %

22.3 %

22.5 %

22.7 %

22.8 %

23 %

23.2 %

出力誤差 (+)

+ 0.5 %

JIS規定検査条件（AM 1.5, 放射照度 1000W/m², モジュール温度 25°C）

公称動作環境での性能

最大出力（Pmax）

430 Wp

433 Wp

437 Wp

441 Wp

445 Wp

449 Wp

453 Wp

最大出力作動電圧（Vmpp）

41.18 V

41.36 V

41.54 V

41.72 V

41.9 V

42.08 V

42.26 V

最大出力作動電流（Impp）

10.42 A

10.47 A

10.52 A

10.57 A

10.62 A

10.67 A

10.72 A

開放電圧（Voc）

49.33 V

49.53 V

49.73 V

49.93 V

50.13 V

50.33 V

50.52 V

短絡電流（Isc）

10.81 A

10.86 A

10.91 A

11.96 A

11.01 A

11.06 A

11.11 A

最大耐久温度

42±2 °C

公称動作条件（放射照度800W/m², AM 1.5, 風速1m/s,ambient temperature 20°C）

温度特性

作動温度範囲

-40~85 °C

温度係数（Pmax）

-0.29 %/°C

温度係数（Voc）

-0.25 %/°C

温度係数（Isc）

0.045 %/°C

システム統合パラメータ

最大入力電圧

1500 V

定格入力電流

25 A

その他仕様情報

外形寸法 (高さ/幅/奥行)

2278x1134x30 mm

質量

31.5 kg

１枚当たりのセル数

144

ガラスタイプ

アンチリフレクション・コーティング・ガラス

ガラスの厚さ

2 mm

構造フレームタイプ

陽極酸化アルミニウム

ジャンクションボックス保護

IP 68

コネクター

MC4

ケーブル断面

4 mm²

ケーブルの長さ

300 mm

PDF

メーカーのPDFをダウンロードします

Solar N Plus — Best Solar Solution for You

Ultra-high Efficiency

TOPCon Module

Much higher module conversion efficiency of 23%, resulting in significantly lower LCOE and greater BoS savings

Low attenuation, long warranty (30-year power warranty with less than 0.4% annual linear power decay)

Significantly improved temperature coefficient of -0.29%

Higher bifacially of 85% leads to more power generation

10GW N-type TOPCon solar cell and module facilities available in July 2023
2GW PERC solar cell and module capacity available right now

Research and Development Strength

＞26% Cell efficiency has surpassed 26%
80+ Authorized Patents
200+ Pending Patents
25% of employees are dedicated to R&D
7 of the employees hold PhD degrees
R&D investment accounts for 5% of sales revenue

Certifications

Cooperation Cases

Exhibitions

Solar N Plus New Energy Tech. Co., Ltd

: Click to show company phone
: www.solarnplus.com
: 中国
: No. 1, Jianye Road, Zhongxin Suchu Industrial Development Zone, Chuzhou, Anhui

親会社： Jiangsu Lanfeng Bio-chemical Co., Ltd.

メーカーに連絡する

注意：お問い合わせはSolar N Plus New Energy Tech. Co., Ltd.に直接に送信されます。

結晶系

生産高 (MW)/： MWp

単結晶，結晶系

パワーレンジ(Wp)： -

便利な連絡先

Ashley.wang

Solar N Plus

企業説明

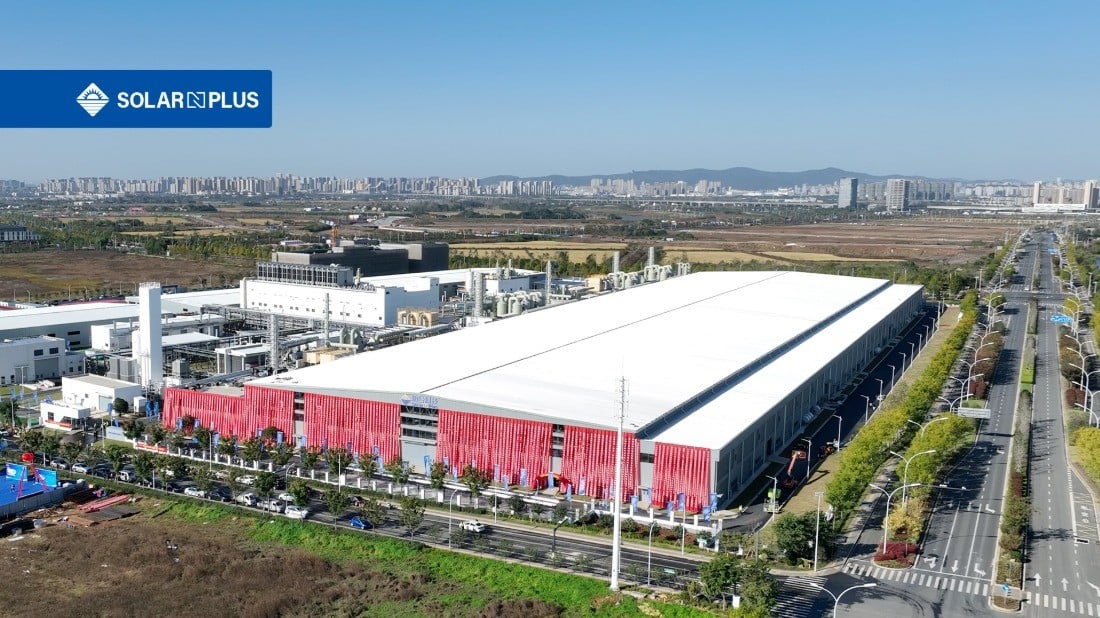

Solar N Plus is a vertically integrated photovoltaic manufacturer with N-type TOPCon technology at its core. The company's business portfolio encompasses photovoltaic solar cells, modules, power station development, and smart energy solutions. It operates three major production bases in China boasting a capacity of 2GW for PERC cells and modules, along with a 10GW capacity for N-Type cells and modules. Each facility is equipped with cutting-edge intelligent automatic production lines and real-time AI monitoring equipment, ensuring optimal efficiency and quality control.With top-notch products, comprehensive management systems, and exceptional service, Solar N Plus is poised to surpass 10 billion CNY in sales within its inaugural five years, contributing significantly to global sustainability efforts while providing unmatched value to its customers.

Solar N Plus has been awarded the prestigious "5AA1" rating in the Dun & Bradstreet after undergoing a rigorous evaluation. This rating signifies its strong financial standing, reliable payment practices, and overall excellence in operations, positioning it as a trusted and reputable company in the industry. Solar N Plus heavily invests in material testing and product development. Our in-house laboratory, certified by an international third-party authority, streamlines the process of bringing new products to market, saving both time and costs while systematically enhancing our testing capabilities and quality control.

Solar N Plus takes pride in its commitment to product excellence, and achieves through a comprehensive certification system. Every step of our production process undergoes rigorous testing, ensuring that our solar products meet the highest quality standards. We partner with globally recognized certification organizations, renowned for their stringent criteria and industry expertise.

Through these efforts, we strive to make sunshine accessible for all.
