Pitched Tile Roof Solar Roof Mounting System -

Xiamen Kseng Metal Tech Co., Ltd.
価格:
価格 ¥5.16 / Wp より
価格 ¥6,810 / 4 パネル より
地域: 中国 中国
メーカーに連絡する
注意:お問い合わせはXiamen Kseng Metal Tech Co., Ltd..に直接に送信されます。

説明:

  • Available in different sizes to meet various roof applications.

  • The roof hook’s height is adjustable.

  • Easy to install, saving you construction time and labor costs.

製品の特徴

型式
Pitched Tile Roof Mounting System
製品保証 10 年
概観
タイプ 勾配屋根
マウントシステム構成
パネルのフレーミング ティンセル,非フレーム
パネルの向き 縦,横
屋根の種類 タイル
風荷重
216 km/h
雪荷重
1.4 kN/m2
一般的なデータ
支持構造材料 アルミ,ステンレス鋼
小型部品の材料 ステンレス鋼
PDF
メーカーのPDFをダウンロードします

Product Details

Specifications

Product Name

Pitched Roof Mounting System

Material

Aluminum & Stainless Steel

Standard

AS/NZS 1170

Wind Load

216 km/h = 60 m/s

Snow Load

1.4 km/m²

Surface Treatment

Anodized

Applicable Module

Framed or Frameless

Module Orientation

Portrait or Landscape

Certifications

ISO9001, CE, etc.

Warranty

10 years for Product, 25 years for Service Life


Installation Steps

Step 1: Remove tiles, Put on the hook.
Step 2: Use two wood screws to fix the hook to the wooden beam of the roof.
Step 3: Complete the installation, put the tiles back in place.
Step 4: Use the bolt assembly to link the rail to the hook.
Step 5: Rail installation completed.

Solar Panel Installation Steps:
Step 6: Install end clamp and solar panel, install middle clamp to fix the solar panel.
Step 7: Attach the grounding lug to the end of the rail.
Step 8: Tighten all bolts firmly to complete the installation.
Main Accessories For Solar Pitched Roof Mounting

1. Solar Roof Hook

We have different types of solar roof hooks to match different pitched roofs. We also have simple roof hooks for solar tile roofs.

We have an adjustable solar roof hook series wherein the height is adjustable. We can also provide a customized service.

2. Solar Rail

These are some of the solar rails used for solar tile roofs.

3. Other Related Accessories

These are some solar accessories used in solar pitched roof mounting. These include middle clamps, end clamps, rail splices, wooden screws, bolts and nuts. All of these products come in different types for you to choose from.

About the Company

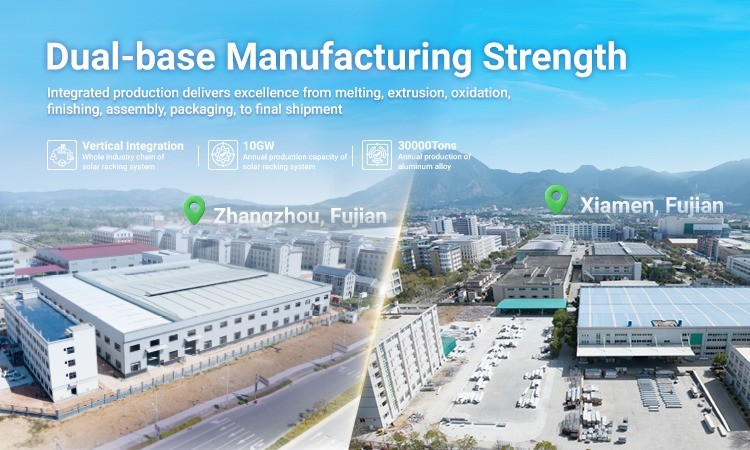

Kseng, a national high-tech enterprise specializes in providing solar racking and tracking systems for residential, commercial,and utility-scale solar applications. Headquartered in Xiamen, China, it owns two production bases in Xiamen and Zhangzhou, Fujian with an annual production capacity of up to 8GW. It integrates five production lines covering aluminum/carbon solar racking, tileroof hook, solar tracker and ground screw, aiming at building a solar racking manufacturing enterprise with a whole industrial chain through vertical integration production. Driven by the mission of “Empowering our world with clean energy ”, Kseng Solar has increased its global presence with branches in Netherlands, South Korea, Japan, Australia, Malaysia, Vietnam, Hong Kong S.A.R, and other countries and regions. Since the inception of 2015, Kseng Solar has a proven track record as the ideal racking brand for its strong engineering, manufacturing, and customer service capability. With its own manufacturing base to conduct strict quality control and numerous international standards accreditations, Kseng Solar has accomplished nearly 12.5GW of solar racking shipments。by the end of 2023. Its market share ranked No.1 in Japan & Korean aluminum solar racking market, and keeps No.1 growth rate in the European and Chinese aluminum solar racking market.

Our Office

Factory&Sample Room
Solar PV Mounting Manufacturing Process Diagram
Ground Screw Manufacturing Process Diagram
Exhibitions
Certifications
FAQ

Xiamen Kseng Metal Tech Co., Ltd.

Click to show company phone
www.xmkseng.com
中国
6-8F, Huixin Wealth Centre, No. 891, Fanghu North 2nd Rd., Huli Dist., Xiamen, Fujian, China
スタッフナンバ―: 400
注意:お問い合わせはXiamen Kseng Metal Tech Co., Ltd..に直接に送信されます。

便利な連絡先

企業説明

Verified Pro Supplier KSENG Solar specializes in providing solar racking and tracking systems for residential, commercial, and utility-scale solar applications.Kseng European warehouse in Poland and Holland.

Driven by the mission of “Empowering our world with clean energy ”, Kseng Solar has increased its global presence with branches and offices in Netherlands, South Korea, Japan, Australia, Malaysia, Hong Kong S.A.R, and other countries and regions. And it has up to 6.55GW annual production capacity with manufacturing bases in Indonesia, Malaysia, and China.

Since the inception of 2015, Kseng Solar has a proven track record as the ideal racking brand for its strong engineering, manufacturing, and customer service capability. With its own manufacturing base to conduct strict quality control and numerous international standards accreditations, Kseng Solar has accomplished nearly 6.55GW of solar racking shipments by the end of 2022. It has ranked No.1 in Korean solar racking market and keeps the best annual growth rate for seven consecutive years in Japan’s solar racking market.

製品ビデオ

付加事務所

国:
韓国
所在地:
306ho, 7-19, Cheongna Canal-ro 260beon-gil, Seo-gu, Incheon, Republic Of Korea
製品
Introduction

Kseng Solar is a total solutions provider that offers solar racking and tracking systems for residential, commercial, industrial and utility-scale solar applications.

Driven by the mission of "Empowering our world with clean energy”, Kseng Solar has increased its global presence with branches and offices in South Korea, Japan, Australia, Malaysia, Vietnam, Hong Kong S.A.R and other countries and regions. It has up to 6 GW annual production capacity with manufacturing bases in Indonesia, Malaysia, Fujian and Tianjin.

Since its inception in 2015, Kseng Solar has a proven track record as an ideal racking brand for its strong engineering, manufacturing and customer service capability. With its manufacturing base to conduct strict quality control and numerous international standards accreditation, Kseng Solar has accomplished more than 6 GW of solar racking shipments by the end of 2021. It has ranked No.1 in Korea’s solar racking market and keeps the best annual growth rate for six consecutive years in the Japanese market.

Main Products

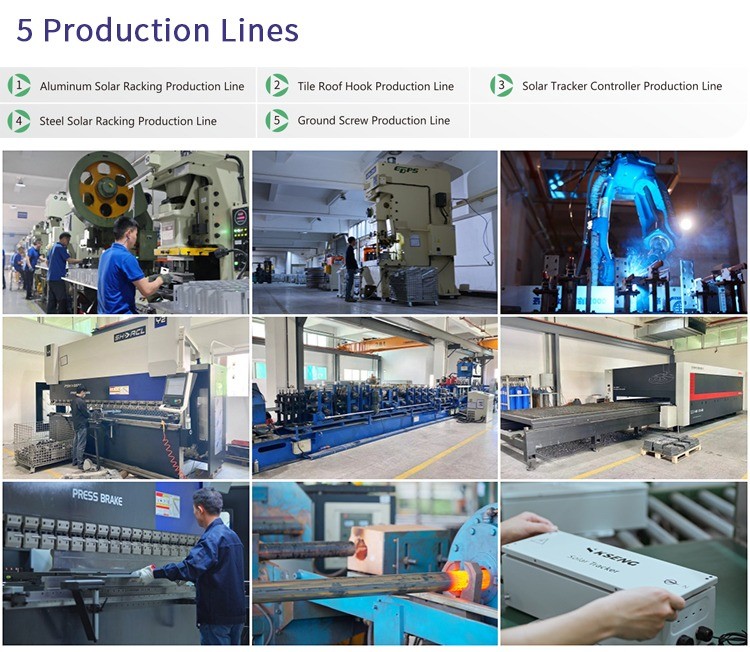

Our Factory

We have two production lines. The first one is for solar mounting systems and the one is for ground screws.

1. Solar PV Mounting Manufacturing Process Diagram
2. Ground Screw Manufacturing Process Diagram
Our Office
Certifications and Patents

Kseng has obtained nearly 100 utility model patents. The products have also been approved by AS/NZS 1170, TUV, UL, CE, CPP, and ISO 9001 quality management standards and other internationally authorized certifications.

Enterprise Honor
Kseng has won the honour of Xiamen Municipal High-tech Enterprise as one of the top 10 PV mounting suppliers.
Exhibitions
Projects
