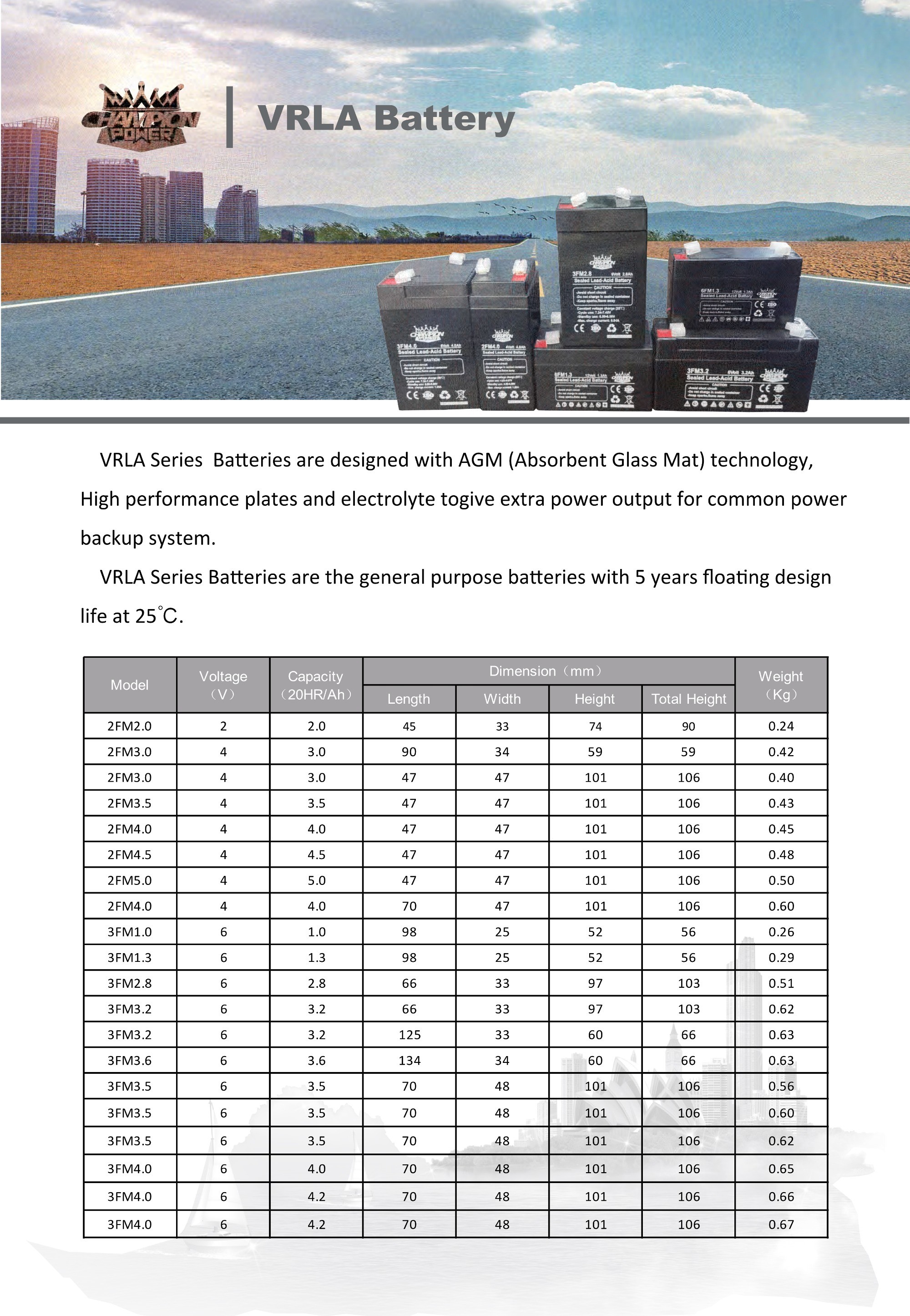

VRLA Series

Champion Power Tech Co., Ltd.
価格:
価格 ¥8,450 / kWh より
価格 ¥251 / 台 より
蓄電システム技術: AGM
公称容量: 3.5 - 250 Ah
地域: 中国 中国
メーカーに連絡する
注意:お問い合わせはChampion Power Tech Co., Ltd..に直接に送信されます。

説明:

  • Absorbent Glass Mat technology for improved performance.

  • Wide capacity range - from 3.5 to 250 ampere-hours.

  • Optimised electrolyte formulation enhances energy-holding capability.

  • Long design life of up to 10 years.

倉庫:
江門 中国
ストック:
2,950 個
倉庫所在地: 江門 中国
型式 ストック(個) メーカーに連絡する
6FM7.0 310
6FM12 310
3FM150 300
3FM200 500
6FM100 630
6FM150 300
6FM200 300
6FM250 300

製品の特徴

型式
2FM5.0 3FM4.0 3FM10 12FM3.5 6FM5.0 6FM7.0 6FM12 6FM20 3FM150 3FM200 4FM180 6FM40 6FM100 6FM150 6FM200 6FM250
製品仕様
価格(kWh)
¥12,600 / kWh ¥11,500 / kWh ¥10,500 / kWh ¥12,100 / kWh ¥11,200 / kWh ¥9,420 / kWh ¥8,550 / kWh ¥9,030 / kWh ¥10,300 / kWh ¥8,880 / kWh ¥8,750 / kWh ¥8,620 / kWh ¥8,450 / kWh
価格(ユニット)
¥251 / 台 ¥275 / 台 ¥630 / 台 ¥1,020 / 台 ¥674 / 台 ¥791 / 台 ¥1,230 / 台 ¥2,170 / 台 ¥5,210 / 台 ¥10,700 / 台 ¥15,800 / 台 ¥20,700 / 台 ¥25,400 / 台
製品保証 (最低限) 2 年
コンフィギュレーション バッテリーのみ
蓄電システム技術 AGM
蓄電池 データシート
電気データ
公称電圧
4 V 6 V 6 V 24 V 12 V 12 V 12 V 12 V 6 V 6 V 8 V 12 V 12 V 12 V 12 V 12 V
公称容量
5Ah@20hr 4Ah@20hr 10Ah@20hr 3.5Ah@20hr 5.0Ah@20hr 7.0Ah@20hr 12Ah@20hr 20Ah@20hr 150Ah@20hr 200Ah@20hr 180Ah@20hr 42Ah@20hr 100Ah@20hr 150Ah@20hr 200Ah@20hr 250Ah@20hr
設計寿命
5 年 5 年 5 年 5 年 5 年 5 年 5 年 5 年 10 年 10 年 10 年 10 年 10 年 10 年 10 年 10 年
サイクル寿命 @ %DOD 350@100%DOD, 500@50%DOD
温度のパラメータ
作動時温度 -20 ~ +50 ℃
一般的なデータ
寸法(長さ*幅*高さ)
47x47x101 mm 70x48x101 mm 151x50x94 mm 180x73x70 mm 151x65x100 mm 151x65x100 mm 151x98x100 mm 181x77x167 mm 260x180x250 mm 323x178x227 mm 260x182x298 mm 196x166x171 mm 331x173x233 mm 484x171x241 mm 522x240x236 mm 520x268x240 mm
質量
0.5 Kg 0.66 Kg 1.50 Kg 2.50 Kg 1.80 Kg 2.05 Kg 3.00 Kg 5.40 Kg 27.00 Kg 27.50 Kg 35 Kg 12.40 Kg 27 Kg 40 Kg 55.00 Kg 64.00 Kg
PDF
メーカーのPDFをダウンロードします

Champion Power, founded in 2000, is one of the leading Lead-acid Battery manufacturer in China, which professionally specialize in Lead-acid Battery research, production, and sales.

Our headquarters is in Shenzhen, and 2 production bases are located in Jinxi(Jiangxi) and Jiangmen(Guangdong), which totally cover an area of 25,000 square meters. With 10 highly automatic production lines and over 300 employees, our monthly production capacity is 1.8 million pieces.

We apply high technology and advanced equipment to every of our production procedures to guarantee product quality. We have altogether over 50 QC machines and 90 kinds of testing tools.

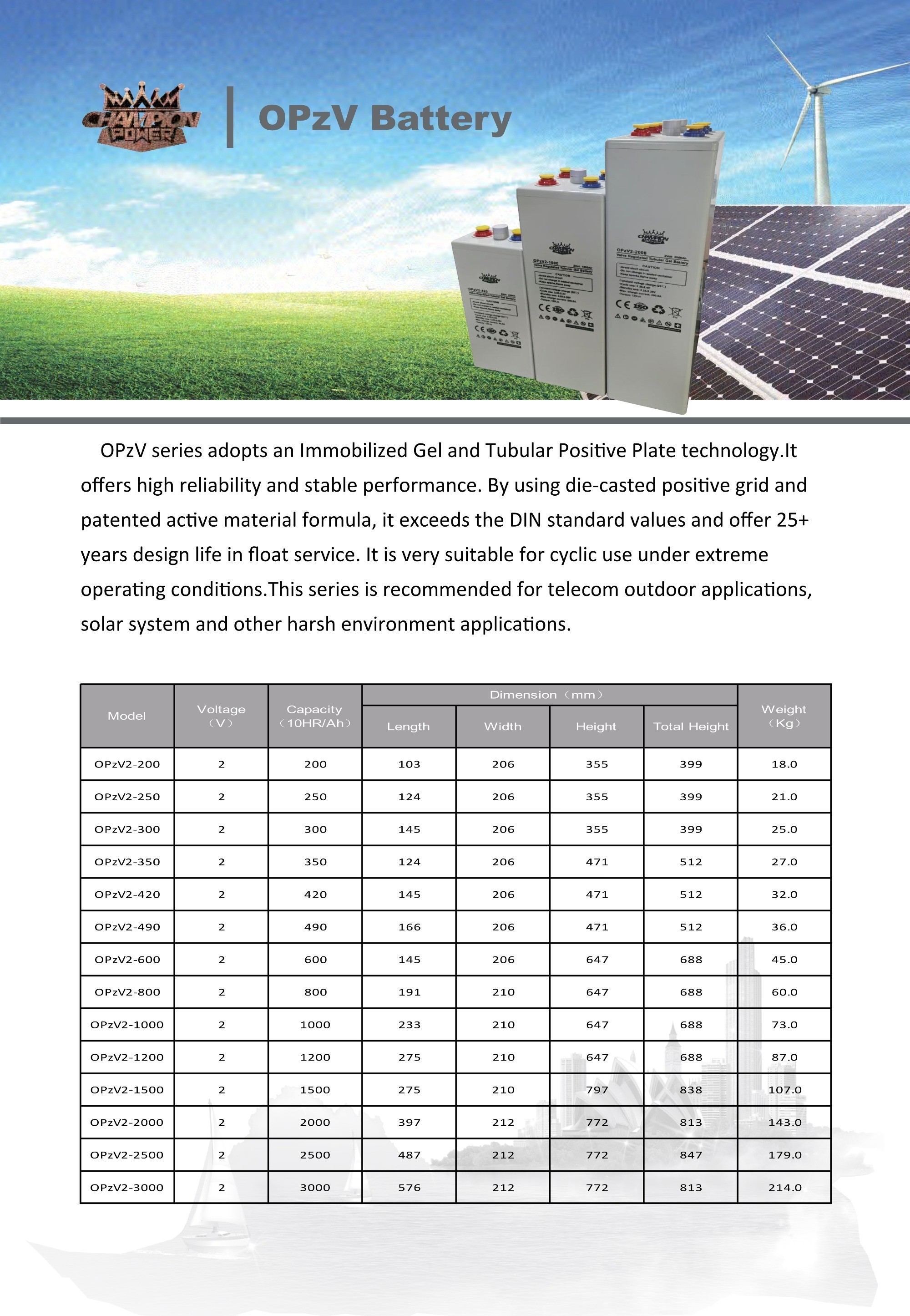

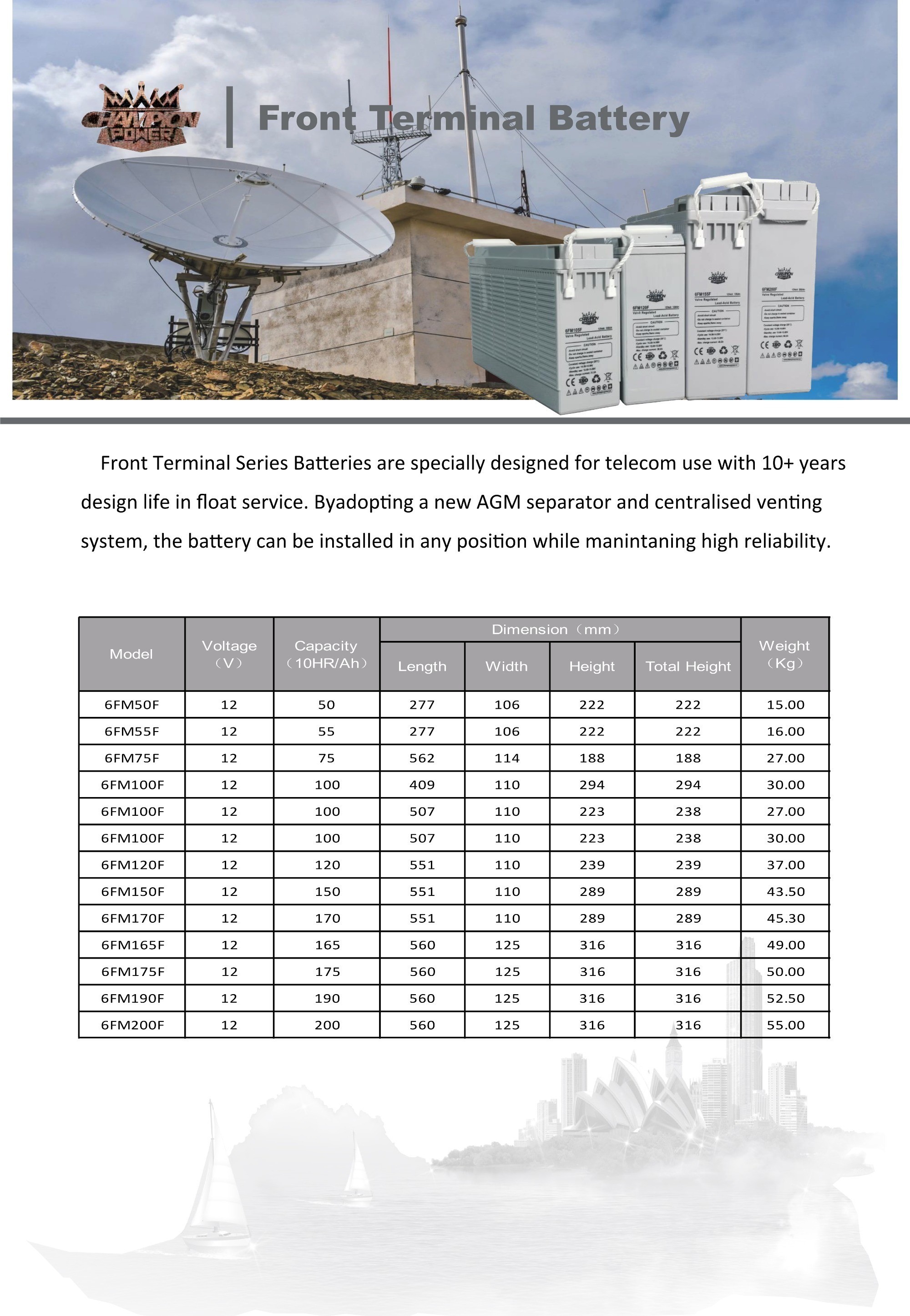

Our main products: AGM Batteries,2V Long Life Battery, Gel Battery, Deep Cycle Battery, Front Terminal Battery, OPzV Battery, OPzS Battery, Motorcycle Battery, Start-Stop Battery, Maintenance-Free Car Battery, LiFePO4 Battery and so on.

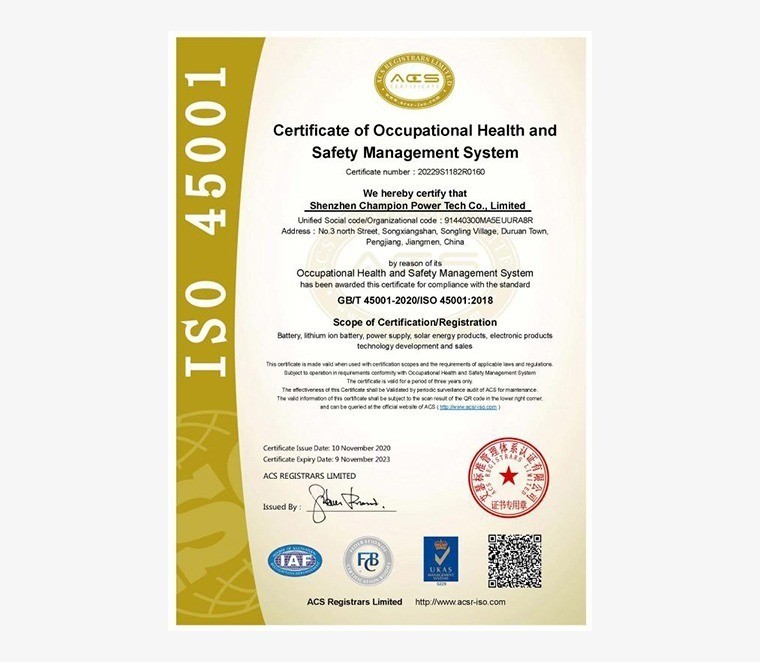

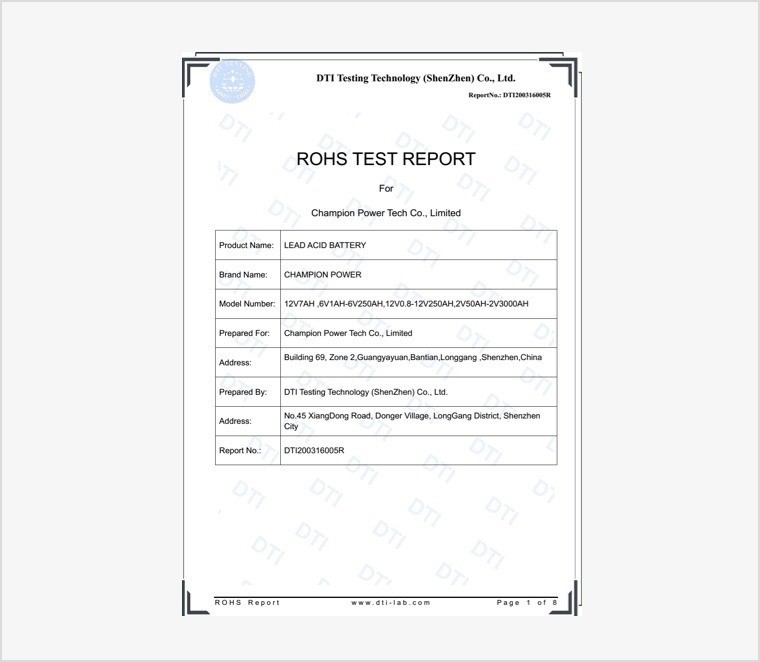

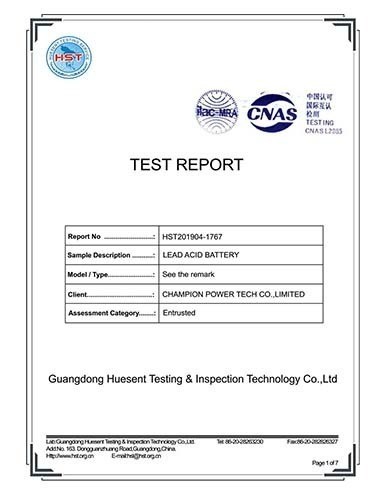

Quality is always our pursuit, all our batteries have been certified by: ISO9001, ISO14001, ISO45001, UL, CE, RoHS, FCC, IEC60896, IEC61427, and IEC61056. Our batteries sell well in both domestic and overseas markets, we have exported to over 70 countries, such as the USA, UK, Russia, Australia, Spain, Greece, Peru, Colombia, Israel, Singapore, India, South Africa, Nigeria, and so on.

Our Company

Our Products

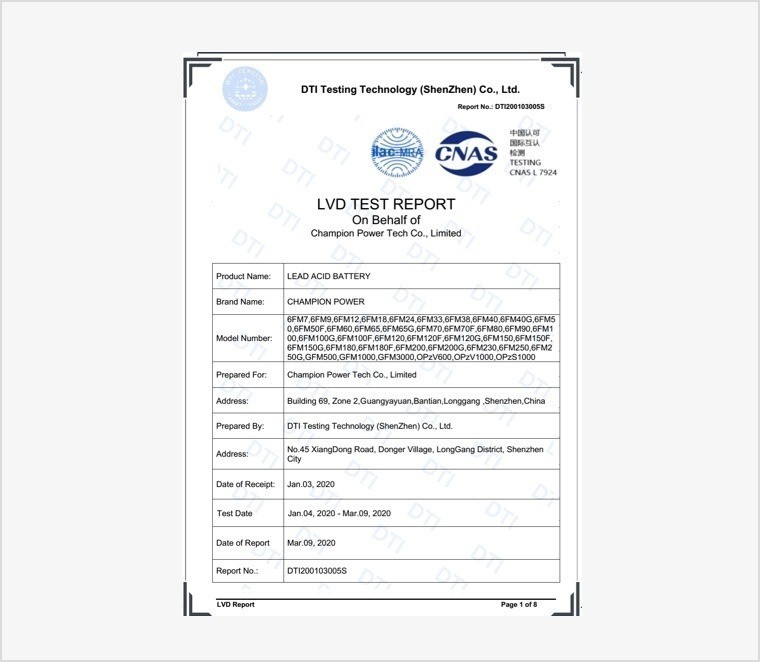

Our Certifications

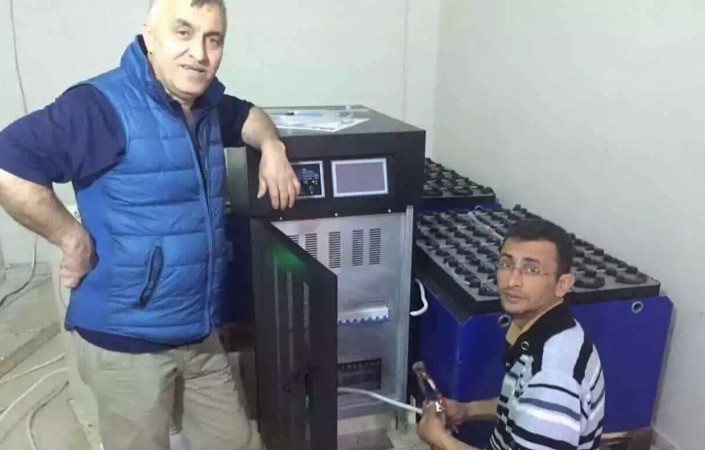

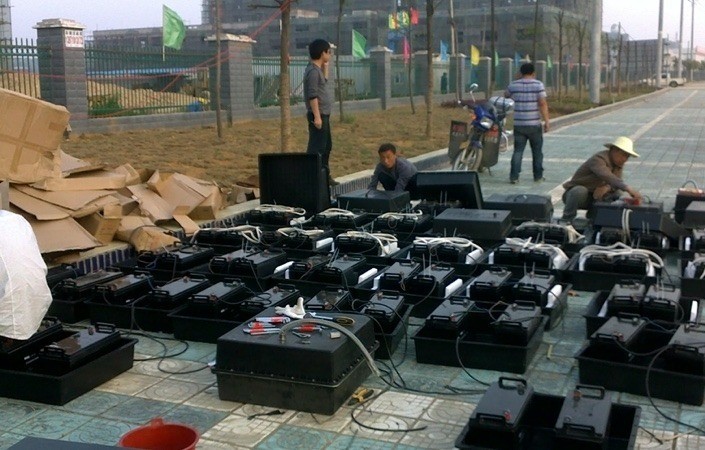

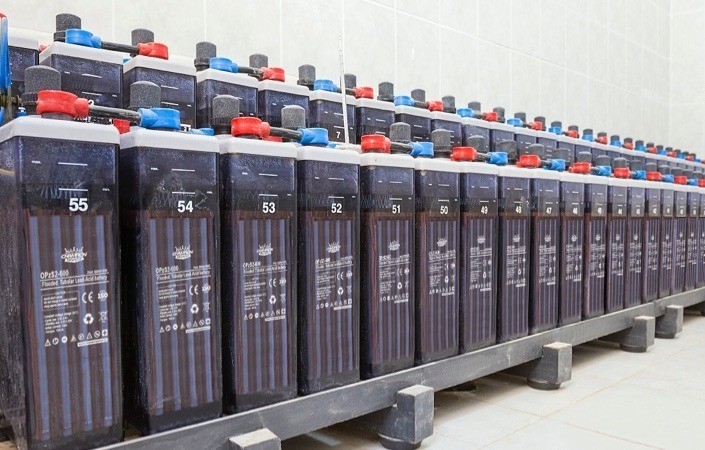

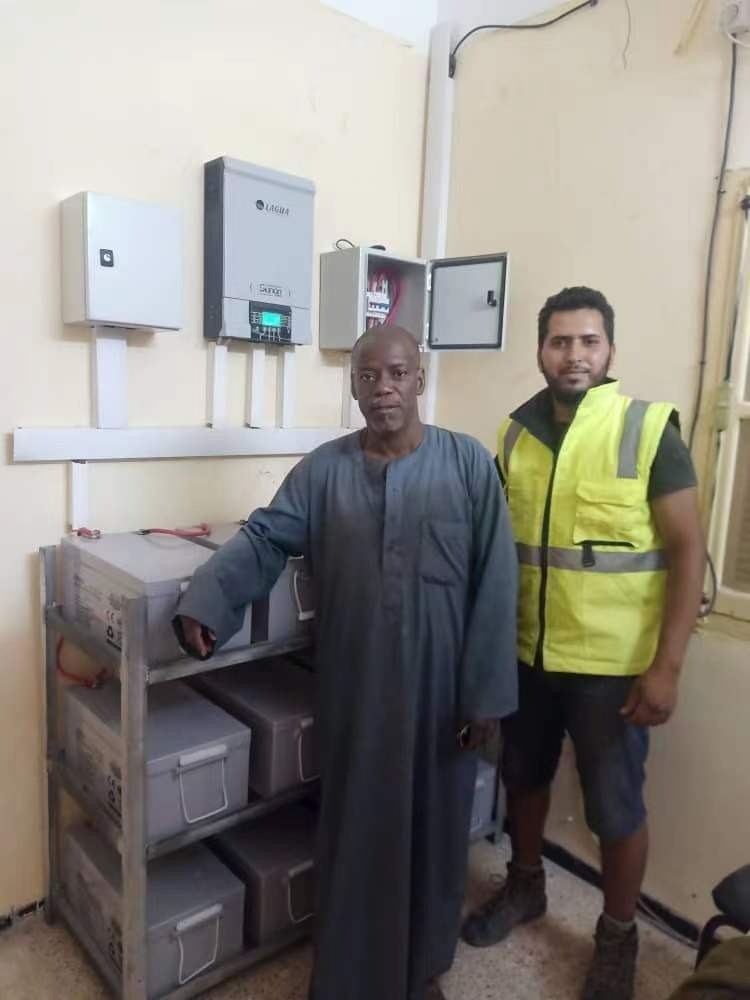

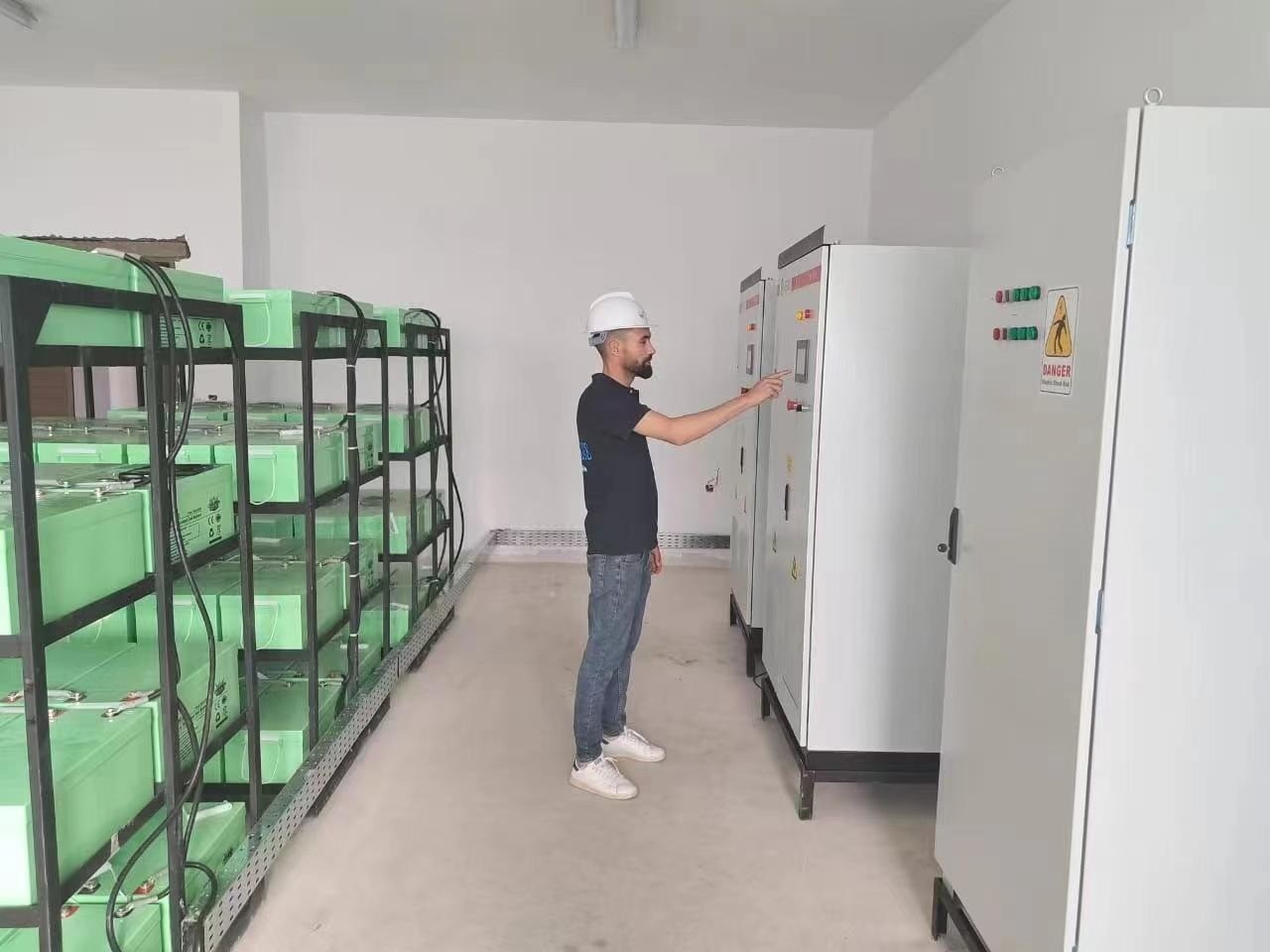

Our Projects

Our Exhibitions

Champion Power Tech Co., Ltd.

Click to show company phone
www.championpower.cn
中国
Room 1206B,Building A,Shenglong Times Square,No. 33,Heping Road,Longhua,Shenzhen,China
スタッフナンバ―: 400
注意:お問い合わせはChampion Power Tech Co., Ltd..に直接に送信されます。
企業説明

2000 年に設立された Champion Power は、鉛酸バッテリーの研究、開発、生産、販売を専門とする中国有数の鉛酸バッテリー メーカーの 1 つです。同社は深センに本社を置き、江西省晋西市と広東省江門市に2つの生産拠点を持ち、総面積は25,000平方メートルです。同社は 10 の高度に自動化された生産ラインと 300 人を超える従業員を擁し、月産生産能力は 180 万個です。あらゆる生産工程に高度な技術と最新の設備を導入し、製品の品質を保証します。同社は 50 台以上の品質検査装置と 90 台以上のテストツールを備えています。

当社の主な製品には、AGMバッテリー、2V長寿命バッテリー、ゲルバッテリー、ディープサイクルバッテリー、フロントエンドターミナルバッテリー、OPzVバッテリー、OPzSバッテリー、オートバイバッテリー、アイドリングストップバッテリー、メンテナンスフリーの自動車バッテリー、LiFePO4バッテリー、等品質は当社の一貫した追求であり、すべてのバッテリーはISO9001、ISO14001、ISO45001、UL、CE、RoHs、FCC、IEC60896、IEC61427、IEC61056およびその他の認証に合格しています。当社のバッテリーは国内外の市場でよく売れており、米国、英国、ロシア、オーストラリア、スペイン、ギリシャ、ペルー、コロンビア、イスラエル、シンガポール、インド、南アフリカ、ナイジェリアを含む70カ国以上に輸出されています。 、など。
