Industrial and commercial energy storage system...

Shenzhen GSL Energy Co., Ltd.
価格:
価格 ¥28,100 / kWh より
価格 ¥2,850,000 / 台 より
蓄電システム技術: LFP (LiFePO4)
公称容量: 200 Ah
地域: 中国 中国
メーカーに連絡する
注意:お問い合わせはShenzhen GSL Energy Co., Ltd..に直接に送信されます。

説明:

The Mini C&I Energy Storage System is a fully integrated, pre-configured solution for LargeResidential and Light Commercial Projects (3Ph 220/380, 230/400Vac @60Hz). The Mini C&I ESShas numerous applications such as Microgrid, backup, off-grid peak shaving, time of use, selfsupply, demand response and Virtual Power Plant (VPP).

製品の特徴

型式
GSL-BESS-50K80 GSL-BESS-50K100 GSL-BESS-50K120 GSL-BESS-50K130
製品仕様
価格(kWh)
¥34,800 / kWh ¥30,700 / kWh ¥29,100 / kWh ¥28,100 / kWh
価格(ユニット)
¥2,850,000 / 台 ¥3,140,000 / 台 ¥3,570,000 / 台 ¥3,750,000 / 台
製品保証 (最低限) 10 年
コンフィギュレーション オールインワン
蓄電システム技術 LFP (LiFePO4)
部品 inverter
取り付けオプション フロア
最大並列ユニット数 32
蓄電池 データシート
電気データ
公称電圧
409.6 V 512 V 614.4 V 665.6 V
公称容量
200Ah@20hr 200Ah@20hr 200Ah@20hr 200Ah@20hr
公称エネルギー
81.92 kWh 102.4 kWh 122.88 kWh 133.12 kWh
最大放電電流
100 A 100 A 100 A 100 A
最大充電電流
100 A 100 A 100 A 100 A
設計寿命
15 年 15 年 15 年 15 年
サイクル寿命 @ %DOD 8500@80%DOD
温度のパラメータ
充電温度 -0 ~ +55 ℃
放電温度 -20 ~ +55 ℃
貯蔵温度 -0 ~ +35 ℃
一般的なデータ
寸法(長さ*幅*高さ)
1100x750x2255 mm 1100x750x2255 mm 1100x1400x1650 mm 1100x1400x1650 mm
質量
969.6 Kg 1172 Kg 1294.4 Kg 1375.6 Kg
IP 定格 IP55
ソーラー・インバーターのパラメーターリスト
逆变器インバータの入力特性
定格入力電力
65 kW 65 kW 65 kW 65 kW
定格電圧(DC)
600 V 600 V 600 V 600 V
変換可能最低電圧
180 V 180 V 180 V 180 V
定格入力電流
144 A 144 A 144 A 144 A
最大電力範囲
150~850 V 150~850 V 150~850 V 150~850 V
MPPトラッカー数
4 4 4 4
インバーターの出力特性
定格出力電力
65 kW 65 kW 65 kW 65 kW
出力力率 (cosθ)
0.8 0.8 0.8 0.8
出力電流歪率
< 3 % < 3 % < 3 % < 3 %
電力変換効率
97.6 % 97.6 % 97.6 % 97.6 %
インバーターの一般的なデータ
PDF
メーカーのPDFをダウンロードします

80kWh/100kWh/120kWh/130kWh 409.6V/512V/614.4V/665.6V 50kVA All In One Mini C&I BESSThe Mini C&I Energy Storage System is a fully integrated, pre-configured solution for LargeResidential and Light Commercial Projects (3Ph 220/380, 230/400Vac@60Hz). The Mini C&I ESShas numerous applications such as Microgrid, backup, off-grid peak shaving, time of use, selfsupply, demand response and Virtual Power Plant (VPP). With AC and DC Coupling options,indoor and outdoor installation and Scalable capacity from 80-130kWh per unit, the Mini C&IESS is perfect for your project

The GSL lithium battery is built for energy storage systems. It is a well-designed and high-performance standard battery pack. The battery is compact, easy to install, free of maintenance, and can be installed in parallel with the energy storage system to increase its capacity. It is widely used in home, small commercial, and industrial applications.

Intelligent BMS

Shenzhen GSL Energy Co., Ltd.

Click to show company phone
www.gsl-energy.com
中国
Building 1, Tianan Cyber Park, Longgang District, Shenzhen, Guangdong
注意:お問い合わせはShenzhen GSL Energy Co., Ltd..に直接に送信されます。
企業説明

GSL ENERGYは、正極材料、リチウム電池、BMS、システム統合など、ESS(エネルギー貯蔵システム)に必要なすべての技術を垂直統合したユニークな企業です。

当社独自のブレークスルーとESSアプリケーションへの揺るぎないコミットメントにより、2022年末までに138カ国以上で5.8GWh以上の委託生産に成功している。この実績は、発電、送電、利用のダイナミクスを再構築することへの当社の貢献を証明するものです。

当社は高品質のバッテリーの生産に重点を置いており、CATLやREPTといった中国の大手セルメーカーから調達したグレードAのLiFePO4セルを使用しています。その卓越性が認められたこれらのセルは、テスラの中国工場をはじめ、世界的に有名な自動車メーカーにも採用されています。

私たちは、卓越したエネルギー・ソリューションとサービスを提供することで、「グリーン電力を世界に」という使命を追求してきました。顧客は常に私たちの最優先事項であり、私たちは長期的なビジネス協力のために安全、品質、良いサービスを大切にしています。

GSL ENERGY-- 2006年以来、中国のグリーンエネルギープロバイダーのリーダーです。

製品ビデオ
製品

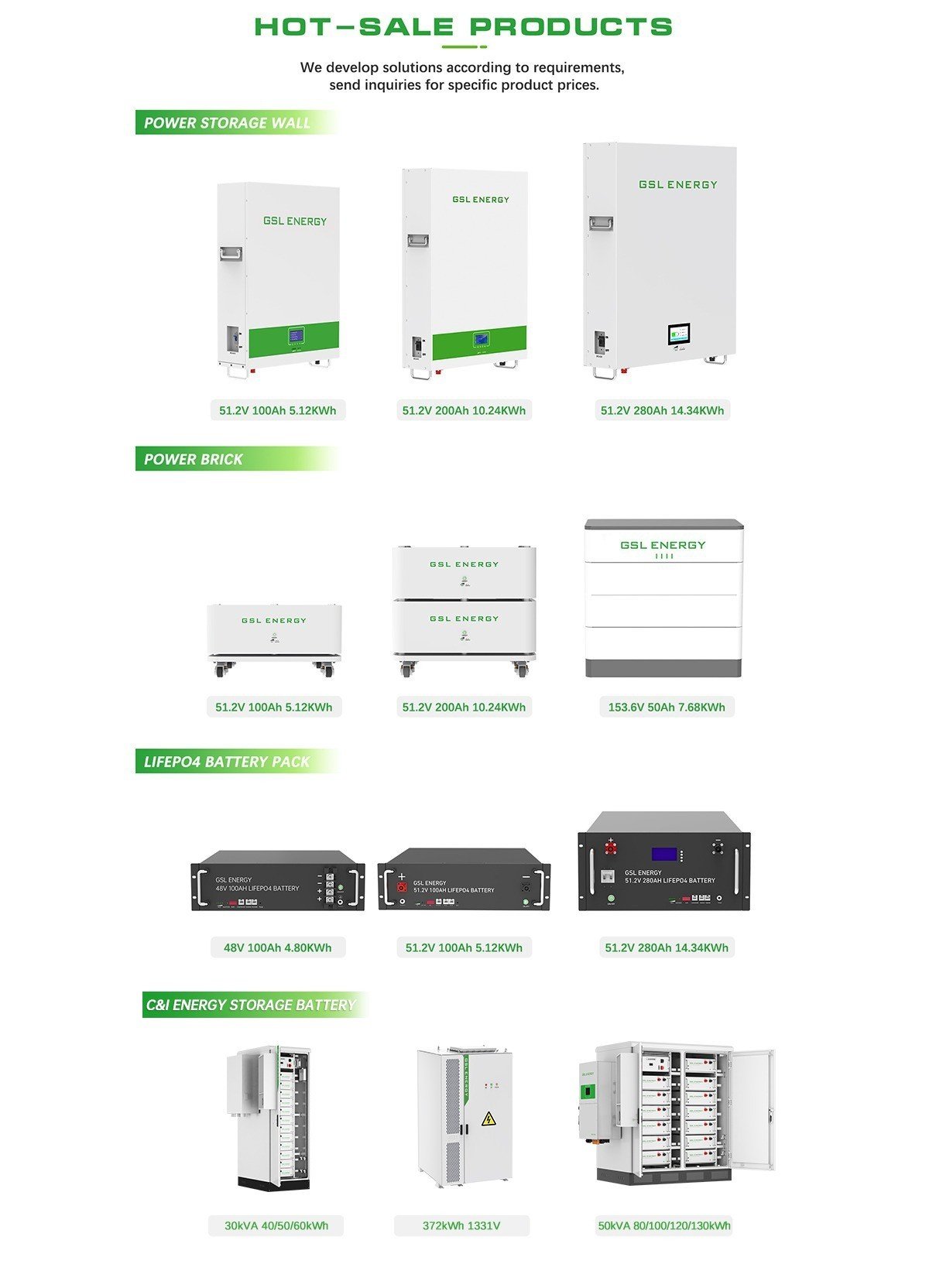

As a factory with 13 years of experience in manufacturing energy storage batteries, GSL ENERGY's products cover industrial, commercial and household energy storage, including Large Storage Batteries, Power Storage Wall, Telecom Batteries, Power Storage Brick, High Voltage LiFePo4 Batter, Hybrid inverter, EV Charger, Portable Power Stations, etc., to meet all customer requirements. If you would like to inquire OEM&ODM or wholesale price, please don't hesitate to contact us for the best solar battery energy storage solution!

About Us

GSL Group Limited is an integrated energy conglomerate specializing in the manufacturing of lithium-ion battery products, leading the charge in the realm of new and sustainable energy. Founded in 2011 and headquartered in Shenzhen City's Longgang District, the subsidiary company GSL Energy operates a cutting-edge factory in Huiyang District, Huizhou City. This high-tech enterprise focuses on delivering tailored solutions and products for lithium batteries, energy storage batteries, and lithium battery power systems to a global clientele.

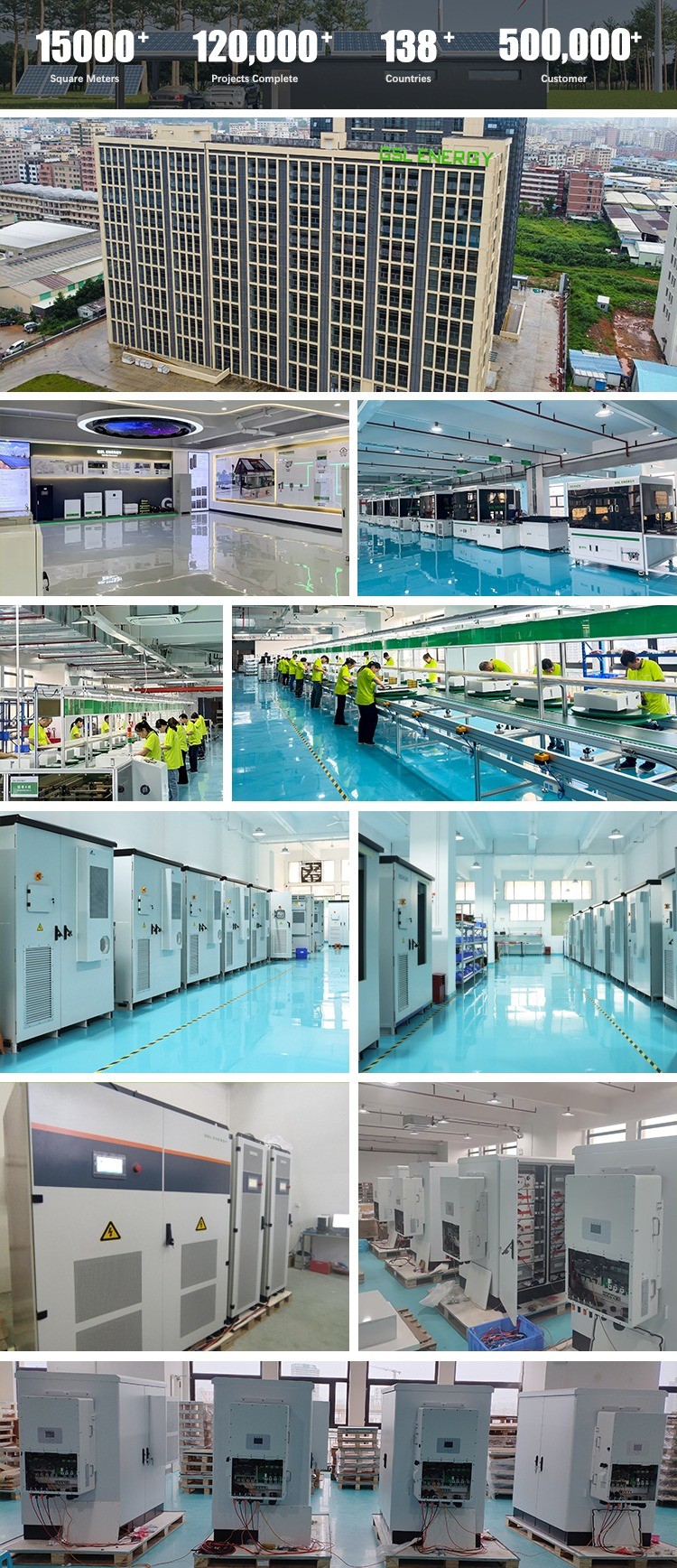

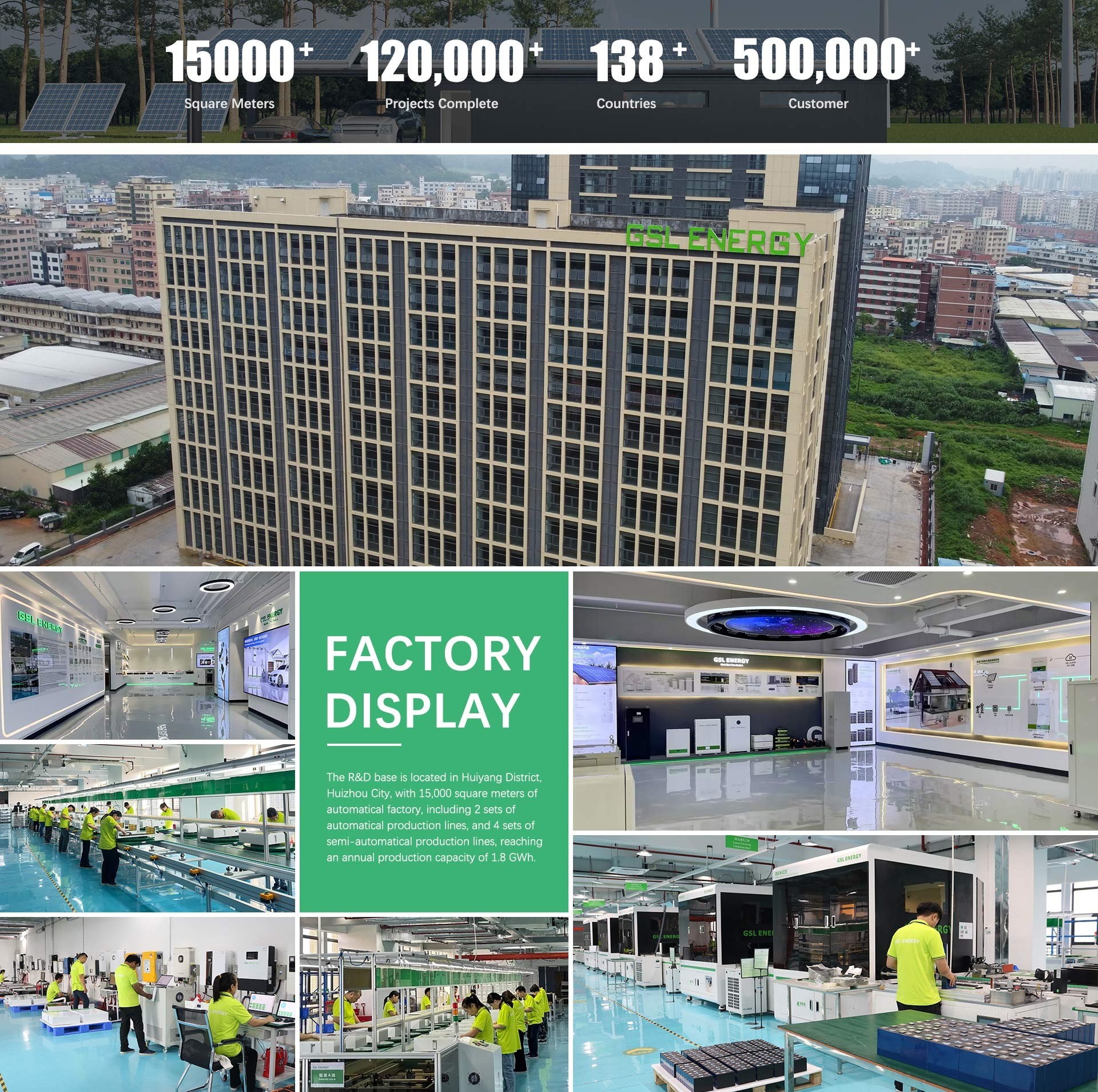

The Huizhou factory spans 15,000 square meters and boasts advanced automation, featuring two sets of automatic production lines and four sets of semi-automated production lines. These facilities are capable of producing 1000 MWH of ESS or BESS products. Complementing this manufacturing site is the company's 1,400 square meter headquarters in Shenzhen. With over 12 years dedicated to energy storage business, GSL Energy employs a skilled workforce of more than 200 individuals, including a proficient 25-member R&D team.
