Star Series NKM-144 430-450

Star Series NKM-144 430-450

Nuuko Power Co., Ltd.
価格:
価格 ¥18.2 / Wp より
タイプ: 両面受光型
出力領域: 430 ~ 450 Wp
地域: 中国 中国
メーカーに連絡する
注意:お問い合わせはNuuko Power Co., Ltd..に直接に送信されます。

説明:

Equipped with 144 split cells in a single module - twice more compared to a conventional solar module

Each half-cut cell produces the same amount of voltage as a standard cell but only half of the current

Module reaches power of up to 455W with a maximum efficiency of 20.9%

Designed to withstand harsh environmental conditions - wind loads (2400 Pa) and snow loads (5400 Pa)

製品の特徴

型式
NKM430-144M6 NKM435-144M6 NKM440-144M6 NKM445-144M6 NKM450-144M6
保証制度
製品保証 12 年
出力保証 84.8%の出力を25年間保証
規定検査条件化での性能
最大出力(Pmax)
430 Wp 435 Wp 440 Wp 445 Wp 450 Wp
最大出力作動電圧(Vmpp)
41.2 V 41.4 V 41.6 V 41.8 V 42 V
最大出力作動電流(Impp)
10.44 A 10.51 A 10.58 A 10.65 A 10.72 A
開放電圧(Voc)
49.6 V 49.8 V 50 V 50.2 V 50.4 V
短絡電流(Isc)
11.09 A 11.16 A 11.22 A 11.29 A 11.36 A
モジュール変換効率
19.8 % 20 % 20.2 % 20.5 % 20.7 %
出力誤差 (+)
+ 1 % + 1 % + 1 % + 1 % + 1 %
  JIS規定検査条件(AM 1.5, 放射照度 1000W/m2, モジュール温度 25°C)
公称動作環境での性能
最大出力(Pmax)
319 Wp 323 Wp 329 Wp 330 Wp 334 Wp
最大出力作動電圧(Vmpp)
38.5 V 38.7 V 38.9 V 39.1 V 39.3 V
最大出力作動電流(Impp)
8.29 A 8.35 A 8.4 A 8.45 A 8.5 A
開放電圧(Voc)
46.4 V 46.6 V 46.8 V 46.9 V 47.1 V
短絡電流(Isc)
8.94 A 9 A 9.04 A 9.1 A 9.16 A
最大耐久温度 43±2 °C
  公称動作条件(放射照度800W/m2, AM 1.5, 風速1m/s,ambient temperature 20°C)
温度特性
作動温度範囲 -40~85 °C
温度係数(Pmax) -0.36 %/°C
温度係数(Voc) -0.26 %/°C
温度係数(Isc) 0.043 %/°C
システム統合パラメータ
最大入力電圧 1500 V
定格入力電流 25 A
その他仕様情報
外形寸法 (高さ/幅/奥行) 2094x1038x30 mm
質量 28 kg
セルタイプ 両面受光型
セルサイズ 166×83 mm
1枚当たりのセル数 144
ガラスタイプ アンチリフレクション・コーティング・ガラス,強化ガラス
ガラスの厚さ 2 mm
構造フレームタイプ 陽極酸化アルミニウム
バイパスダイオード数 6
ジャンクションボックス保護 IP 68
コネクター MC4
ケーブル断面 4 mm2
ケーブルの長さ 1200 mm
PDF
メーカーのPDFをダウンロードします

Our Company

NUUKO has an automated production workshop. Up to now, it has provided solar modules, system solutions, and customized services for more than 40 countries around the world.

NUUKO has created a "closed-loop" development model of solar module R&D and production, and distribution cooperation. Its business also covers power station development and investment, solar system integration and sales, etc. Committed to becoming the world's leading new energy company, creating a sustainable future through clean solar energy.

  • Experienced R&D Innovation System

The group brings together top experts and talents from home and abroad in the fields of silicon wafers, solar cells, and solar panels and has hundreds of sets of state-of-the-art development software, instruments, and equipment. Nuuko strengthens cooperation with various research institutes at home and abroad, builds platforms for enterprises, universities, and research institutes, and has cooperated with a number of universities and research institutions to develop research in the field of materials.

  • Scientific Researcher Management and Incentive System

The group conducts technical seminars, establishes a professional title evaluation system, forms a scientific mechanism of talent training, exchange, learning, and improvement, and continuously enhances the professional skills of R&D talents in order to accumulate technological innovation strength for enterprises and establish a sustainable mechanism for talent development.

  • Strict Quality Management System

Nuuko stringently selects raw materials that meet the requirements of ISO IEC 17024.
To ensure product safety and reliability all products need pass IEC 61215 and IEC 61730 test certification.

Manufacturing complies with international quality and environmental management standards ISO 9001, QC080000, ISO 14001, and OHSAS 18000.

Why Choose US

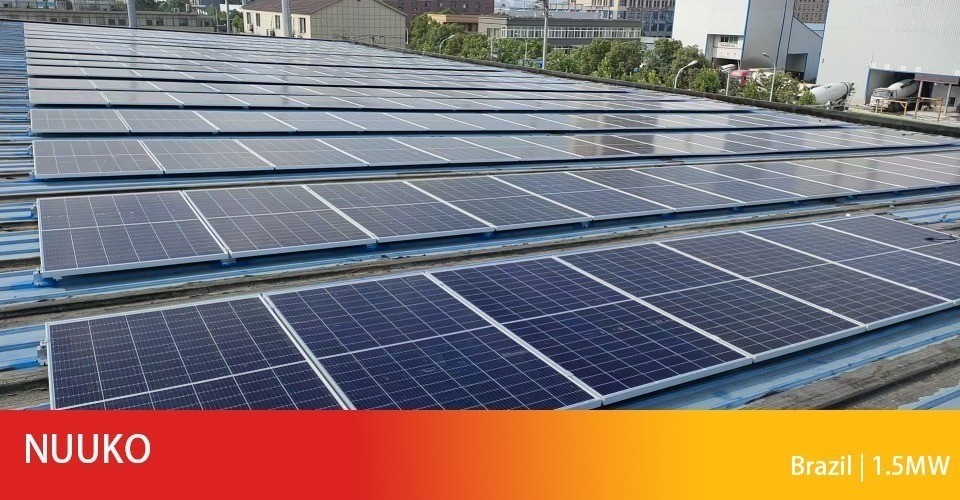

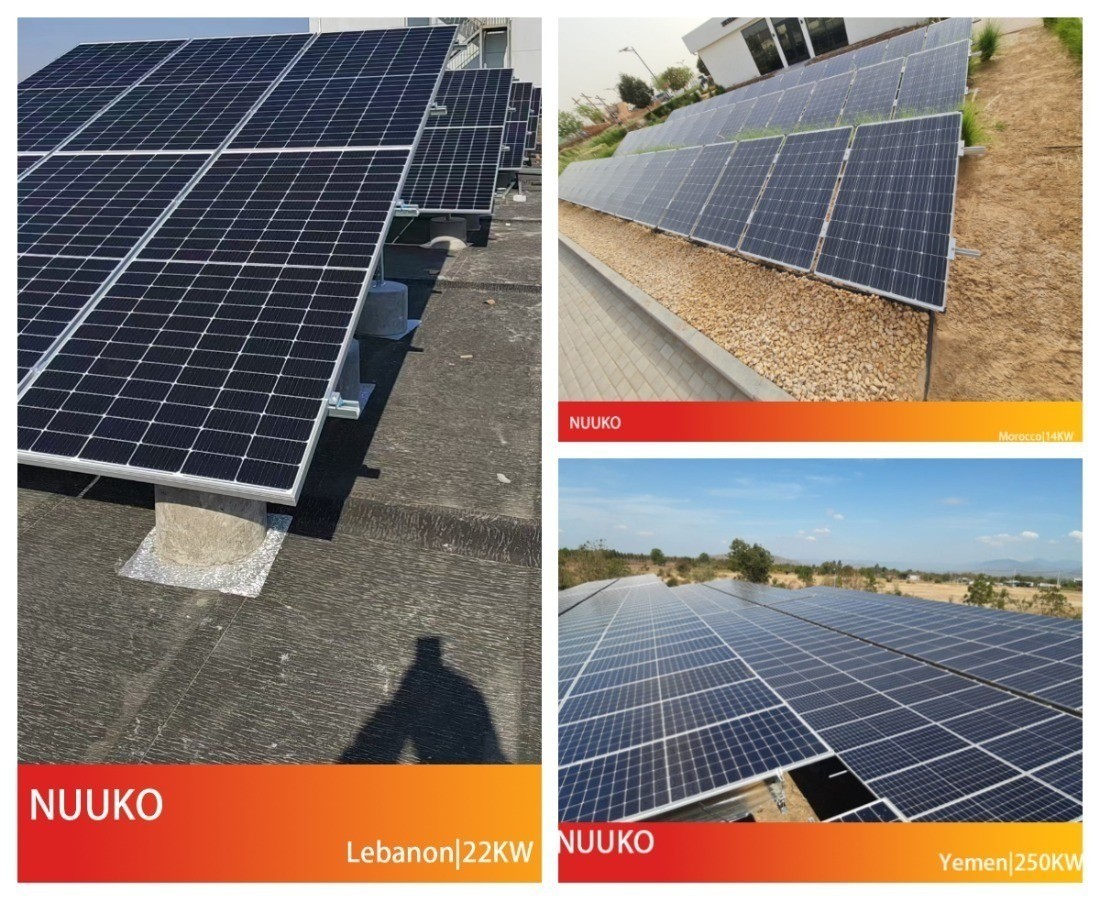

Projects

Nuuko Power Co., Ltd.

Click to show company phone
https://www.nuukopower.com
中国
No. 16 Building, Xiangcheng Road, Feidong Economic Development Zone, Hefei 231600
注意:お問い合わせはNuuko Power Co., Ltd..に直接に送信されます。

結晶系

生産高 (MW)/: MWp
単結晶,多結晶
パワーレンジ(Wp): 350-670
企業説明

NUUKO power was established in 2021, and the company team has nearly 10 years of experience in the photovoltaic industry, as a factory, our capacity is 1GW per year. The business covers the development and investment of silicon wafers, solar cell, solar panel and photovoltaic power plants, solar energy system integration and sales, etc. Up to now, it has provided solar modules, system solutions and customized services for more than 60 countries around the world. NUUKO products are widely used in ground power stations, industrial and commercial rooftop solar systems and residential rooftop solar systems. Relying on continuous technological innovation advantages, as well as a complete global sales and service network, NUUKO's products and services are highly recognized and appreciated by customers. NUUKO solar panels have already obtained international certifications such as TUV, CE, Inmetro, IEC, CB, Dekra, IECEE, Italian fire class 1 certificate, etc. In order to provide customers with better pre-sales and after-sales services, we set up a branch company in Germany and a warehouse in Poland. we have exclusive agency and distributors in different countries also. At the same time, we provide customers with OEM, ODM services, design the datasheet, nameplate and carton for clients.

NUUKO power is committed to becoming the world's leading new energy company and creating a sustainable future through clean solar energy!
