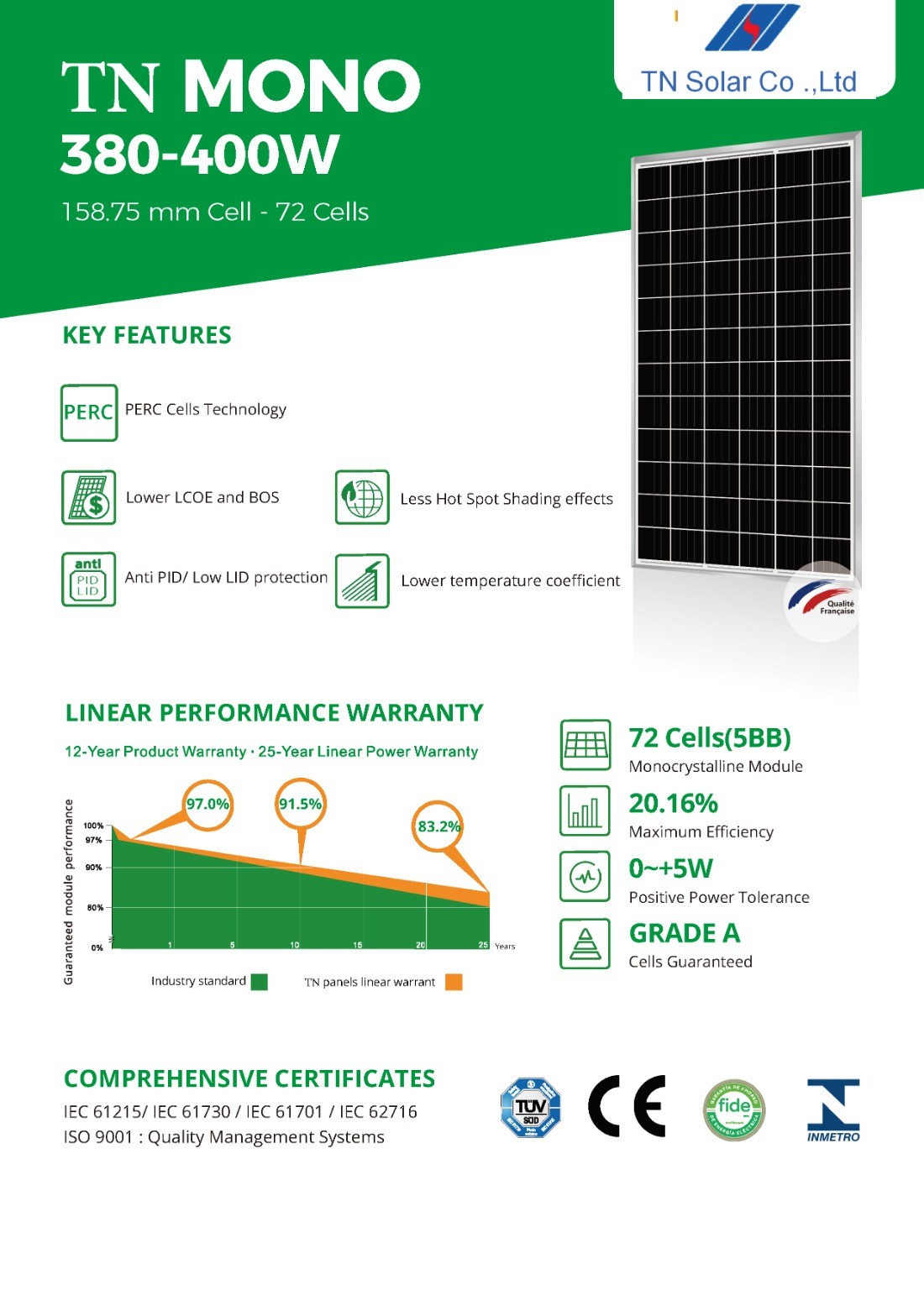

TN-Mono 380-400W

TN-Mono 380-400W

TN Solar Co., Limited
価格:
価格 ¥7.43 / Wp より
Price per 個
Minimum Order 1 2 3+
380 ¥2,880 ¥2,850 ¥2,820
技術: PERC
出力領域: 380 ~ 400 Wp
地域: 中国 中国
メーカーに連絡する
注意:お問い合わせはTN Solar Co., Limited.に直接に送信されます。

説明:

PERC Cells Technology

Lower LCOE and BOS

Anti PID/ Low LID protection

Less Hot Spot Shading effects

Lower temperature coefficient

製品の特徴

タイプ 単結晶
型式
380 385 39 0395 400
保証制度
製品保証 12 年
出力保証 91.5%の出力を10年間保証,83.2%の出力を25年間保証
規定検査条件化での性能
最大出力(Pmax)
380 Wp 385 Wp 390 Wp 395 Wp 400 Wp
最大出力作動電圧(Vmpp)
39.5 V 39.65 V 39.76 V 39.86 V 39.92 V
最大出力作動電流(Impp)
9.62 A 9.71 A 9.81 A 9.91 A 10.02 A
開放電圧(Voc)
48.2 V 48.25 V 48.37 V 48.48 V 48.6 V
短絡電流(Isc)
9.99 A 10.08 A 10.18 A 10.28 A 10.4 A
モジュール変換効率
19.15 % 19.41 % 19.66 % 19.91 % 20.16 %
出力誤差 (+)
+ 1 % + 1 % + 1 % + 1 % + 1 %
  JIS規定検査条件(AM 1.5, 放射照度 1000W/m2, モジュール温度 25°C)
公称動作環境での性能
最大出力(Pmax)
283.34 Wp 287.07 Wp 290.79 Wp 294.52 Wp 298.25 Wp
最大出力作動電圧(Vmpp)
37.03 V 37.17 V 37.27 V 37.37 V 37.42 V
最大出力作動電流(Impp)
7.64 A 7.71 A 7.79 A 7.87 A 7.96 A
開放電圧(Voc)
44.7 V 44.74 V 44.86 V 44.96 V 45.07 V
短絡電流(Isc)
8.12 A 8.19 A 8.28 A 8.36 A 8.45 A
最大耐久温度 45±2 °C
  公称動作条件(放射照度800W/m2, AM 1.5, 風速1m/s,ambient temperature 20°C)
温度特性
作動温度範囲 -40~85 °C
温度係数(Pmax) -0.396 %/°C
温度係数(Voc) -0.31 %/°C
温度係数(Isc) 0.06 %/°C
システム統合パラメータ
最大入力電圧 1500 V
定格入力電流 25 A
その他仕様情報
外形寸法 (高さ/幅/奥行) 1980x1002x35 mm
質量 22.9 kg
セルサイズ 158.75×158.75 mm
1枚当たりのセル数 72
ガラスタイプ アンチリフレクション・コーティング・ガラス,強化ガラス
ガラスの厚さ 3.2 mm
構造フレームタイプ 陽極酸化アルミニウム
バイパスダイオード数 3
ジャンクションボックス保護 IP 68
コネクター MC4
ケーブル断面 4 mm2
ケーブルの長さ 900 mm
PDF
メーカーのPDFをダウンロードします

Product Details

About Us

TN solar is an enterprise specializing in the integrated photovoltaic products manufacturing of silicon ingot, silicon wafer, solar cell and PV module, founded in 2006, our company covers an area of more than 100 thousand square meters our company has passed the evaluation of iso9000 quality control system and has attained CE and TUV certificates .

Based in the port. The leading time is 15 days to major Australian ports. Have supply for Australia, and European market.etc

Production: 5 lines for solar cell, 250,000 pcs cells/day. The capacity for 2013 is 600MW.The production line includes the size of solar cell 156*156mm, 125*125mm, both mono and poly. 5 lines for solar panel, one 40 ft containers/day.

Certificates- IEC61215&IEC61730 for 85W-600W

CEC fire rating :(See attached )

We are specializing in making 350w -450w Mono Silver Series & Black Series and 20w-200w Smaller size panels Silver Series & Black Series

Warranty ------for product warranty, free from defects in material & workmanship:15 years

------for power performance of more than 90% of minimal power: 12years

------for power performance of more than 80% of minimal power: 25 years

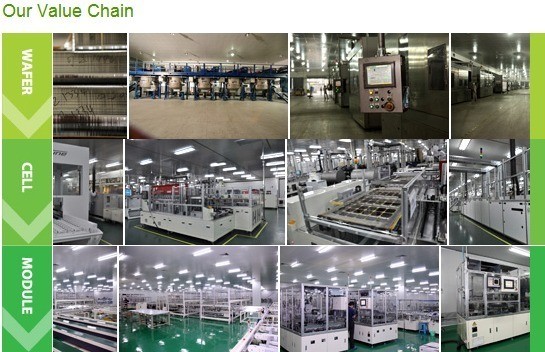

Our Factory

Production Line

Main Products

  • Customize all kinds of solar modules

  • Suppy solar cells

  • Solar systems and components

  • Solar Battery, Cables, MC4, Mounting Kits

Projects

Exported Globally

TN Solar Co., Limited

Click to show company phone
www.tn-solar.com
中国
Wenya Road, Qianhuang Town, Wujin District, Changzhou, Jiangsu
スタッフナンバ―: 300
注意:お問い合わせはTN Solar Co., Limited.に直接に送信されます。

結晶系

生産高 (MW)/: MWp
単結晶,多結晶
パワーレンジ(Wp): 100-730

便利な連絡先

企業説明

TN Solar is an enterprise specialized in the integrated photovoltaic products, such as solar panels and solar cells .

  • We are specializing in making 20~200W small-size panels.

  • Our core products include PERC, TOPCON, HJT, baficial 400W-750w, world cheapest, A grade, high efficiency, up to 20bb solar cells.

  • We also offer a comprehensive warranty and after-sales service to ensure that our customers are fully satisfied with their purchase.

  • We are also committed to providing our customers with fast delivery, excellent customer service and quality assurance.We highly value our customers and provide them with unbeatable customer service as well as unbeatable prices.

Our Capacity is :

  • 5 lines for solar cells, 250,000 pcs/day.

  • 5 lines for solar panels, one 40 ft container/day.

Certificates

  • IEC61215 & IEC61730

  • fire rating Class A
