AS-6M144-HC-435W~465W

Name: AS-6M144-HC-435W~465W
Brand: Amerisolar
SKU: 45677
Price: 0.10500 USD
Availability: InStock

Amerisolar EU

価格：

価格 ¥15.7 / Wp より

技術：	PERC
出力領域：	435 ~ 465 Wp
地域：	中国

メーカーに連絡する

注意：お問い合わせはAmerisolar EU.に直接に送信されます。

説明：

The high module conversion efficiency of up to 21.27% by using innovative Half-cell design and multi-busbar (MBB) cell technology

Low-temperature coefficient and excellent performance under high temperatures and low light conditions

A robust aluminium frame ensures the modules withstand wind loads up to 2400Pa and snow loads up to 5400Pa

PID resistance

製品情報
会社のプロフィール

製品の特徴

タイプ

単結晶

型式

435W

440W

445W

450W

455W

460W

465W

保証制度

製品保証

20 年

出力保証

90%の出力を10年間保証，80%の出力を30年間保証

規定検査条件化での性能

最大出力（Pmax）

435 Wp

440 Wp

445 Wp

450 Wp

455 Wp

460 Wp

465 Wp

最大出力作動電圧（Vmpp）

41.2 V

41.4 V

41.6 V

41.8 V

42 V

42.2 V

42.4 V

最大出力作動電流（Impp）

10.56 A

10.63 A

10.7 A

10.77 A

10.84 A

10.91 A

10.97 A

開放電圧（Voc）

49.6 V

49.8 V

50 V

50.2 V

50.4 V

50.6 V

50.8 V

短絡電流（Isc）

11.1 A

11.16 A

11.22 A

11.28 A

11.34 A

11.4 A

11.46 A

モジュール変換効率

19.9 %

20.13 %

20.36 %

20.58 %

20.81 %

21.04 %

21.27 %

JIS規定検査条件（AM 1.5, 放射照度 1000W/m², モジュール温度 25°C）

公称動作環境での性能

最大出力（Pmax）

323 Wp

327 Wp

331 Wp

335 Wp

339 Wp

343 Wp

347 Wp

最大出力作動電圧（Vmpp）

37.4 V

37.6 V

37.8 V

38 V

38.2 V

38.4 V

38.6 V

最大出力作動電流（Impp）

8.64 A

8.7 A

8.76 A

8.82 A

8.88 A

8.94 A

8.99 A

開放電圧（Voc）

45.6 V

45.8 V

46 V

46.2 V

46.4 V

46.6 V

46.8 V

短絡電流（Isc）

8.99 A

9.04 A

9.1 A

9.14 A

9.19 A

9.24 A

9.29 A

最大耐久温度

43±2 °C

公称動作条件（放射照度800W/m², AM 1.5, 風速1m/s,ambient temperature 20°C）

温度特性

作動温度範囲

-40~85 °C

温度係数（Pmax）

-0.36 %/°C

温度係数（Voc）

-0.28 %/°C

温度係数（Isc）

0.05 %/°C

システム統合パラメータ

最大入力電圧

1500 V

定格入力電流

20 A

その他仕様情報

外形寸法 (高さ/幅/奥行)

2102x1040x35 mm

質量

24 kg

１枚当たりのセル数

144

ガラスタイプ

アンチリフレクション・コーティング・ガラス，強化ガラス

ガラスの厚さ

3.2 mm

構造フレームタイプ

陽極酸化アルミニウム

バイパスダイオード数

ジャンクションボックス保護

IP 68

コネクター

MC4

ケーブル断面

4 mm²

ケーブルの長さ

1400 mm

PDF

メーカーのPDFをダウンロードします

Introduction

Amerisolar is a solar brand originated from America since 2007 with production bases in USA, China, Brazil, and Australia, and it is a renewable energy supply platform of solar modules and Energy Storage Systems (ESS) for global markets.

Amerisolar has been one of the leading PV technical developer in global renewable energy industry and it is taking more competitive strategies based on its Leading PV Technology, High Product Quality, Higher Power Efficiency, Low Cost Management, Global OnePowerStore network, as well as its Worldwide 24/7 Door-to-door Logistics Services. Amerisolar is also a provider of PV technical services for solar power plant (on-grid and off-grid), including technical design, installation and maintenance, for customers all over the world.

We believe in “Innovations create future” and we Amerisolar team will continously to do our best to provide you the best business support.

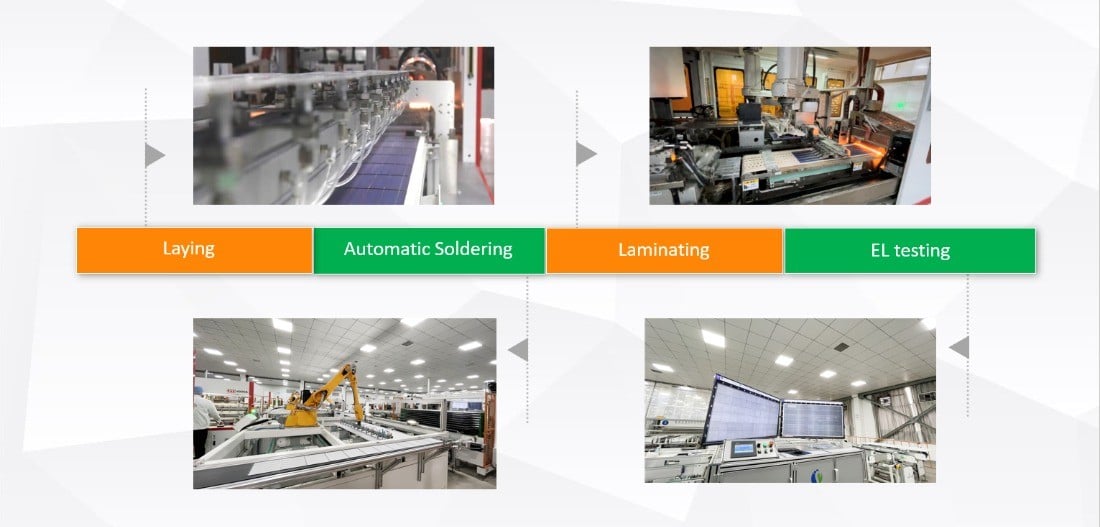

Production Line
