HS72-M-360-400W

HS72-M-360-400W

Changzhou Hershey-Power New Energy Co., Ltd.
価格:
価格 ¥19.8 / Wp より
タイプ: 単結晶
出力領域: 360 ~ 400 Wp
地域: 中国 中国
注意:お問い合わせはChangzhou Hershey-Power New Energy Co., Ltd..に直接に送信されます。

説明:

● High output, 20.32% highest conversion efficiency
● Excellent PID resistance
● Positive tight power tolerance
● Dual stage 100% EL Inspection warranting defect-free product

製品の特徴

型式
HS72-M-360 HS72-M-365 HS72-M-370 HS72-M-375 HS72-M-380 HS72-M-385 HS72-M-390 HS72-M-395 HS72-M-400
保証制度
製品保証 12 年
出力保証 90%の出力を10年間保証,80%の出力を25年間保証
規定検査条件化での性能
最大出力(Pmax)
360 Wp 365 Wp 370 Wp 375 Wp 380 Wp 385 Wp 390 Wp 395 Wp 400 Wp
最大出力作動電圧(Vmpp)
38.95 V 39.25 V 39.6 V 39.95 V 40.25 V 40.55 V 40.85 V 41.2 V 41.5 V
最大出力作動電流(Impp)
9.25 A 9.3 A 9.35 A 9.4 A 9.45 A 9.5 A 9.55 A 9.6 A 9.65 A
開放電圧(Voc)
47.3 V 47.7 V 48.15 V 48.6 V 48.95 V 49.35 V 49.7 V 50.1 V 50.45 V
短絡電流(Isc)
9.8 A 9.85 A 9.9 A 9.95 A 10 A 10.05 A 10.1 A 10.15 A 10.2 A
モジュール変換効率
18.6 % 18.8 % 19.1 % 19.3 % 19.6 % 19.54 % 19.79 % 20.07 % 20.32 %
  JIS規定検査条件(AM 1.5, 放射照度 1000W/m2, モジュール温度 25°C)
公称動作環境での性能
最大耐久温度
45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C 45±2 °C
  公称動作条件(放射照度800W/m2, AM 1.5, 風速1m/s,ambient temperature 20°C)
温度特性
作動温度範囲 -40~85 °C
温度係数(Pmax) -0.39 %/°C
温度係数(Voc) -0.32 %/°C
温度係数(Isc) 0.055 %/°C
システム統合パラメータ
最大入力電圧 1500 V
最大逆電流 20 A
定格入力電流 20 A
その他仕様情報
外形寸法 (高さ/幅/奥行) 1983x1007x40 mm
質量 22 kg
セルタイプ 単結晶
1枚当たりのセル数 72
ガラスタイプ 強化ガラス,アンチリフレクション・コーティング・ガラス,高透過型ガラス,低鉄ガラス
ガラスの厚さ 3.2 mm
構造フレームタイプ 陽極酸化アルミニウム合金
バイパスダイオード数 3
ジャンクションボックス保護 IP 68
ケーブル 4 mm2
ケーブルの長さ 1000 mm

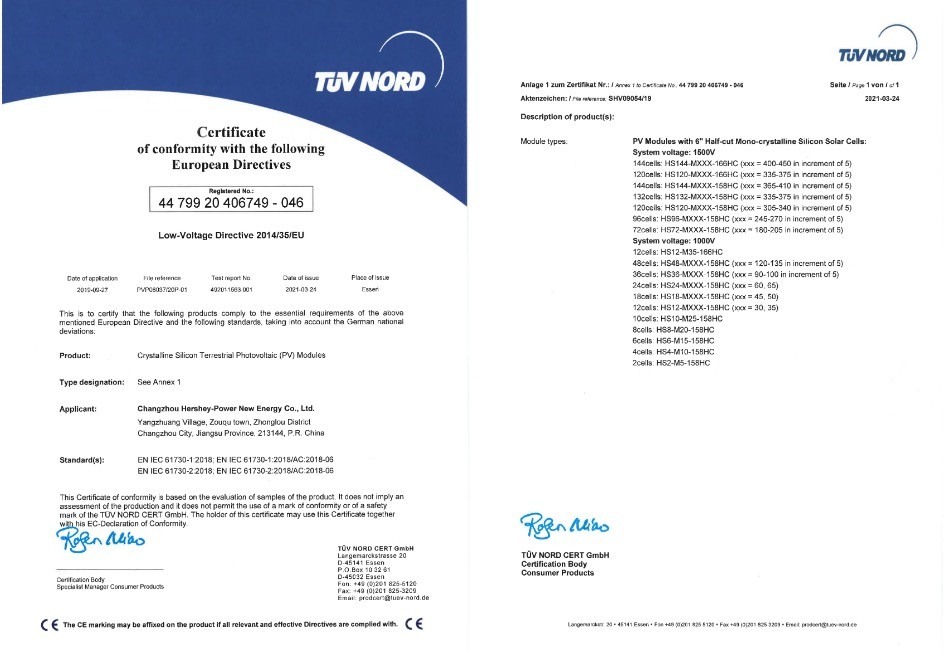

認証
PDF
メーカーのPDFをダウンロードします
