Easy solar kit adjustable angle solar mounting ...

Xiamen Kseng Metal Tech Co., Ltd.
価格:
価格 ¥26.3 / Wp より
価格 ¥8,680 / 1 パネル より
地域: 中国 中国
注意:お問い合わせはXiamen Kseng Metal Tech Co., Ltd..に直接に送信されます。

説明:

The angle ‒adjustable bracket, developed for achieving good combination with solarkit, which can be installed at flat ground or roof, raillings, balcony and garden. It’s much flexible with adjustable tilt range between 30°~50°to get more energy.

製品の特徴

型式
Easy solar kit adjustable angle solar mounting bracket
製品保証 10 年
概観
タイプ 地面
マウントシステム構成
パネルのフレーミング 非フレーム
パネルの向き 縦,横
取り付け角度
30-50 °
風荷重
216 km/h
雪荷重
1.4 kN/m2
一般的なデータ
小型部品の材料 アルミ

Description

The angle ‒adjustable bracket, developed for achieving good combination with solarkit, which can be installed at flat ground or roof, raillings, balcony and garden. It’s much flexible with adjustable tilt range between 30°~50°to get more energy.

Technical Details

lnstall Sitegarden, balcony, railing, walls and etc.
Adjustable angle range
30~50°
StandardJISC 8955-2017 Design Guide on Structures for photovoltaic array
Gross weight per bracket(KG)
8
Length of solar module(MM)
≤2200
Width of solar module(MM)
751≤A≤1313MM
Thickness of solar module(MM)
30-50
Material
AL6005-T5, SUS304,EPDM
Warranty10 years warranty
Service LifeMore than 25 years

Product Details


FEATURES:

*Adapt to multiple scenarios: garden, balcony, railing, walls and etc.
*Modular design with plug and play connection, quick and easy installation
*Adjustable angle manually to adjust the PV module angle for more energy
generation.


About Kseng

Xiamen Kseng Metal Tech Co., Ltd. not only owns a first-class management and technical team, but is a national high-tech enterprise. Every year, it invests massive capitals to research and exploit new products and purchase new testing equipment, covering salt spray tester, mechanical tester, etc. With continuous innovation in practical structure and system performance, Kseng own more than 60 utility model patents. Product structure design absolutely conforms to AS/NZS 1170 standard, JISC8955-2017 standard, European TUV test and SGS certification, working out a safe, reliable and high quality technical solutions for customers, appreciated by “Kseng Products, Be Trustworthy”, so we must keep endeavoring to go for it in the future time.

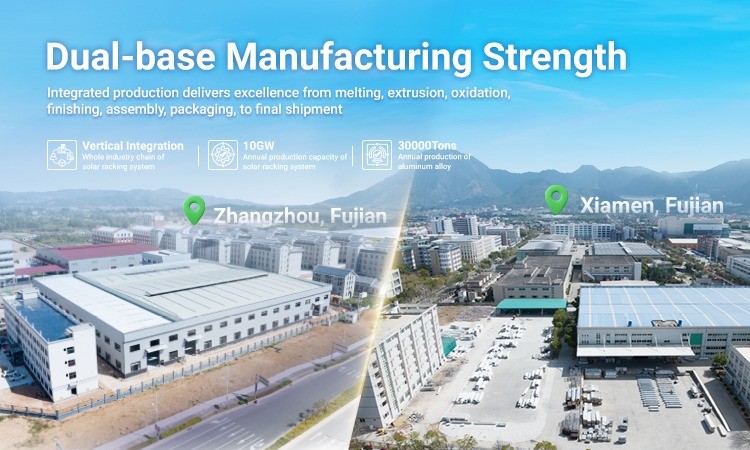

Moreover, Kseng possess a its own factory with an area of 15000 square meters. We insist on the competition core for product quality, purchasing the raw material from listed corporation and strictly supervising the quality and delivery. The current production line is divided into two respects, the first one is for solar mounting bracket, the second one is about ground screws. We adopt standard manufacturing processes, focusing on quality supervision according to ISO9001 quality management system and strictly conducting operators by 6S management system, implementing the double inspection standard to meet the concept on “Kseng Products, Your Choice.”


we have two production line, first one is for solar mounting system, another one is for ground screw.

1.Solar PV Mounting Manufactureing Process Diagram


2.Ground Screw Manufacturing Process Diagram




Our Office

Certification and Patents

Kseng has obtained nearly 100 utility model patents,  the product also approved AS/NZS 1170,TUV,UL, CE, CPP, and ISO 9001 quality management system and other international authorized certification.

Enterprise Honor

Kseng has won the honor of Xiamen Municipal High- tech Enterprise and one of the top 10 pv mounting supplier.


Exhibition
