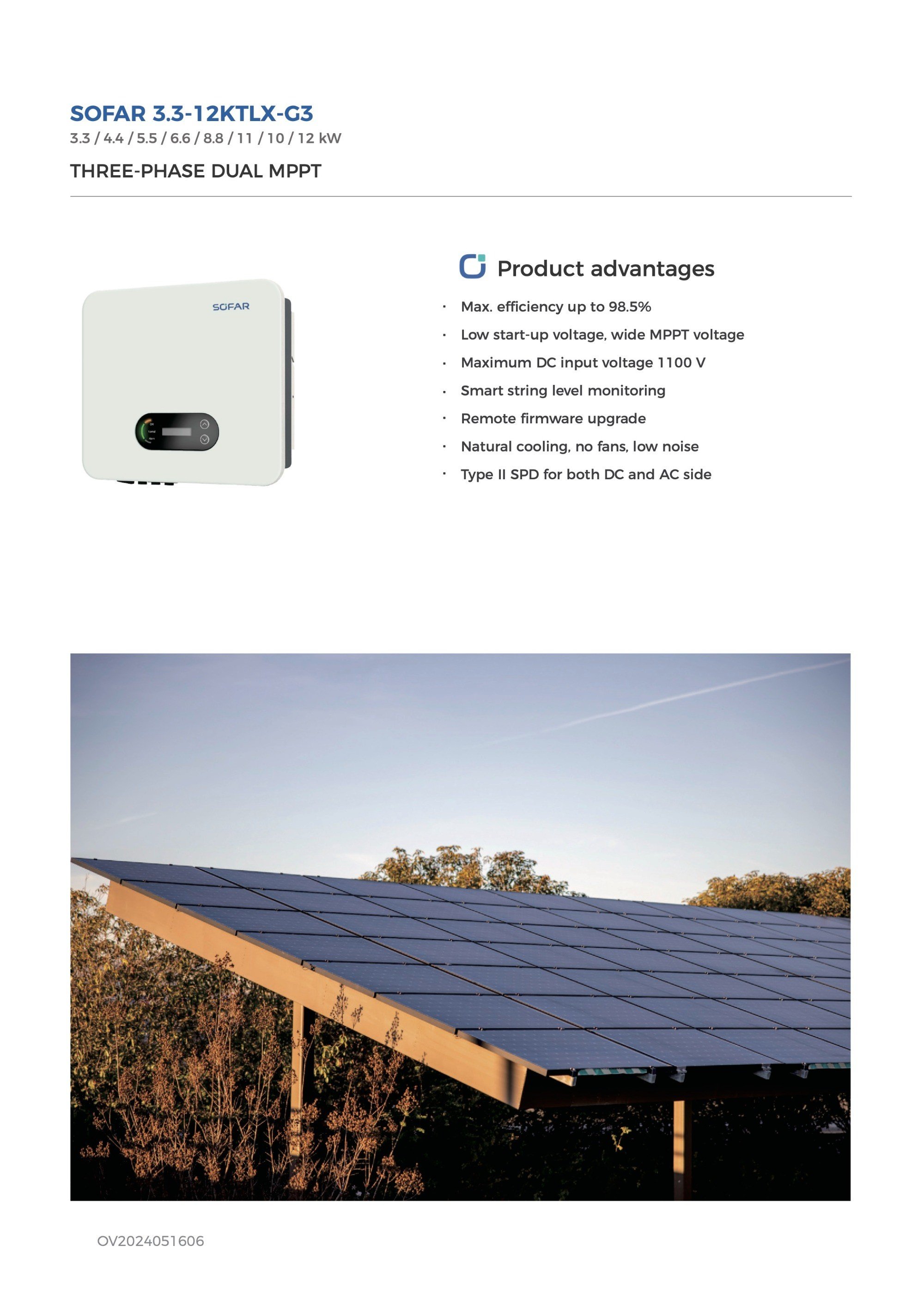

SOFAR 3.3-12KTLX-G3

SOFAR SOFAR 3.3-12KTLX-G3

Slovak Solar s.r.o.
Price per 個
Minimum Order 1+
SOFAR 3.3KTLX-G3 ¥93,900
SOFAR 4.4KTLX-G3 ¥95,900
SOFAR 5.5KTLX-G3 ¥102,000
SOFAR 6.6KTLX-G3 ¥106,000
SOFAR 8.8KTLX-G3 ¥109,000
SOFAR 11KTLX-G3 ¥123,000
SOFAR 12KTLX-G3 ¥122,000
タイプ: 系統連系型
出力領域: --
地域: スロバキア スロバキア
売り手に連絡する
注意:お問い合わせはSlovak Solar s.r.o..に直接に送信されます。

説明:

  • Maximum Efficiency Of Up To 98.5% For Superior Energy Yield

  • Low Start-up Voltage And Wide MPPT Range Enhance Energy Generation

  • Up To 1100 V Dc Input For Greater Flexibility

  • Intelligent String-Level Monitoring Enables Proactive System Management

  • Remote Firmware Upgrades For Continuous Performance Improvements

製品の特徴

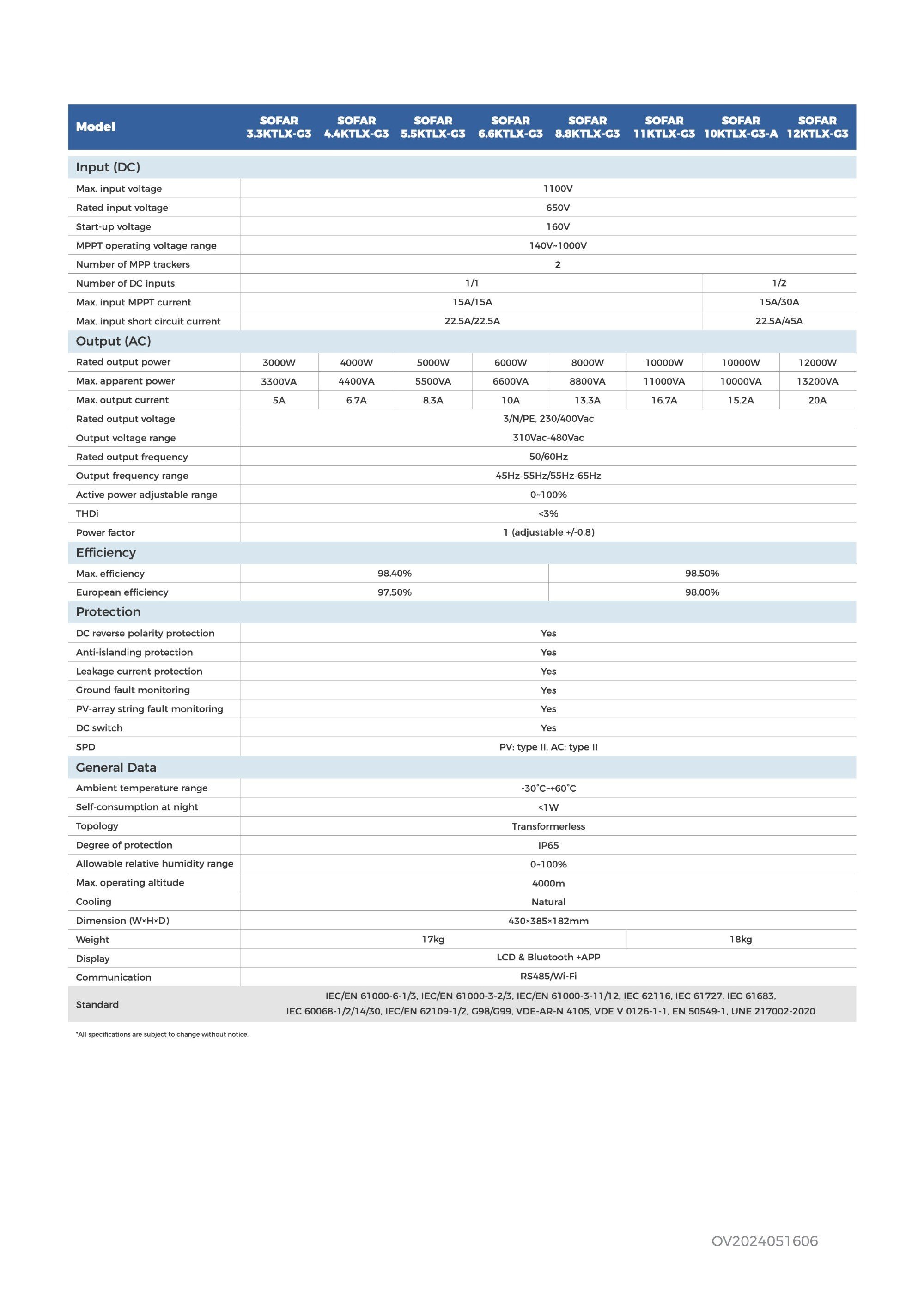

型式
SOFAR 3.3KTLX-G3 SOFAR 4.4KTLX-G3 SOFAR 5.5KTLX-G3 SOFAR 6.6KTLX-G3 SOFAR 8.8KTLX-G3 SOFAR 11KTLX-G3 SOFAR 12KTLX-G3
入力特性
定格入力電圧
1100 V 1100 V 1100 V 1100 V 1100 V 1100 V 1100 V
定格電圧(DC)
650 V 650 V 650 V 650 V 650 V 650 V 650 V
変換可能最低電圧
160 V 160 V 160 V 160 V 160 V 160 V 160 V
定格入力電流
30 A 30 A 30 A 30 A 45 A 45 A 45 A
最大電力範囲
140~1000 V 140~1000 V 140~1000 V 140~1000 V 140~1000 V 140~1000 V 140~1000 V
MPPトラッカー数
2 2 2 2 2 2 2
入力接続タイプ
2 2 2 2 2 2 3
出力特性
通常出力電力
3 kW 4 kW 5 kW 6 kW 8 kW 10 kW 12 kW
出力電圧範囲
310~480 V 310~480 V 310~480 V 310~480 V 310~480 V 310~480 V 310~480 V
定格出力電流
5 A 6.7 A 8.3 A 10 A 13.3 A 16.7 A 20 A
定格出力周波数範囲
45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz 45-65 Hz
定格出力周波数
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
出力力率 (cosθ)
1 1 1 1 1 1 1
出力電流歪率
< 3 % < 3 % < 3 % < 3 % < 3 % < 3 % < 3 %
電気方式
3 3 3 3 3 3 3
電力変換効率
98.4 % 98.4 % 98.4 % 98.4 % 98.5 % 98.5 % 98.5 %
ユーロ効率
97.5 % 97.5 % 97.5 % 97.5 % 98 % 98 % 98 %
一般的なデータ
外形寸法 (高さ/幅/奥行)
385x430x182 mm 385x430x182 mm 385x430x182 mm 385x430x182 mm 385x430x182 mm 385x430x182 mm 385x430x182 mm
質量
17 kg 17 kg 17 kg 17 kg 17 kg 18 kg 18 kg
夜間消費電力
< 1 W < 1 W < 1 W < 1 W < 1 W < 1 W < 1 W
作動時温度 -30 ~ +60 ℃
変圧器 无変圧器
保護等級 IP65
相対湿度 0-100 %
冷却方式 自然風
設置可能最高高度 4000 m
通信仕様 RS 485, Bluetooth, WLAN
ディスプレイ LCD
保護機能
保護機能 単独運転防止機能,逆極性保護機能,地絡監視機能
PDF
メーカーのPDFをダウンロードします

Slovak Solar s.r.o.

Click to show company phone
https://www.slovaksolar.com
スロバキア
Nábrežie slobody 795/2, 020 01, Púchov
スタッフナンバ―: 3
注意:お問い合わせはSlovak Solar s.r.o..に直接に送信されます。

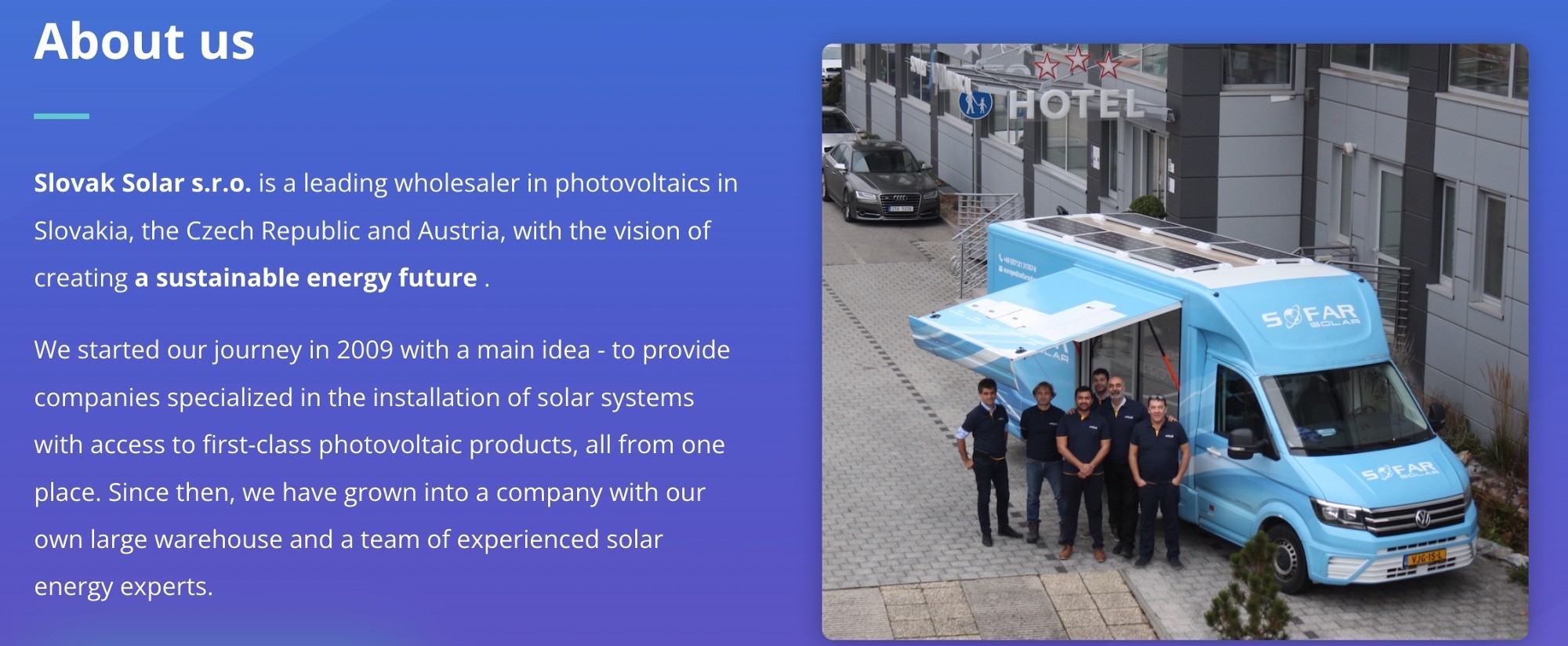

企業説明

At Slovak Solar, we believe that progress comes from constant innovation. From day one, we've been breaking new ground in Slovakia’s solar energy sector.

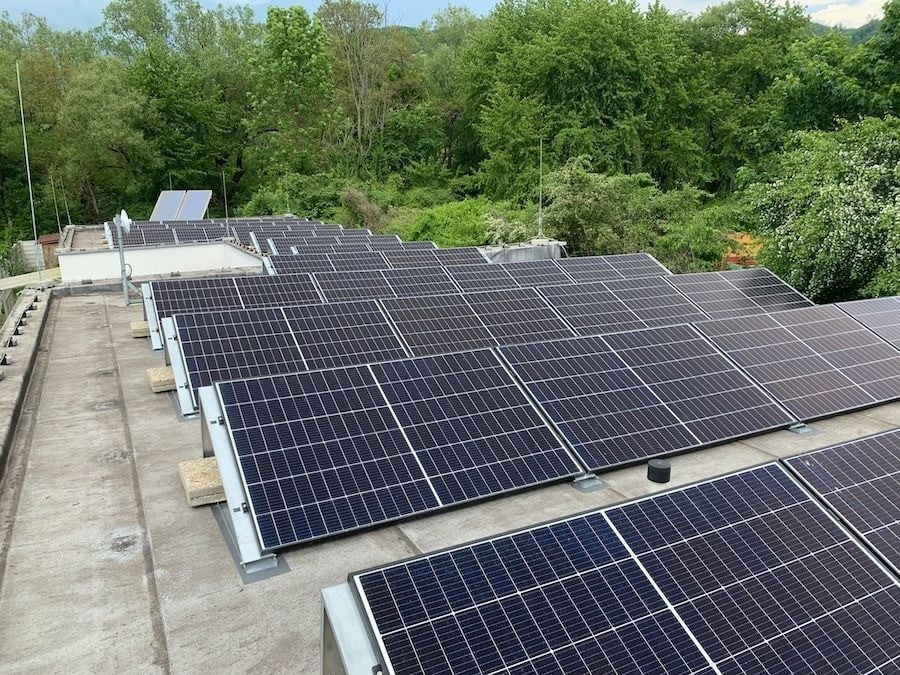

We were one of the first companies in Slovakia to install Building-Integrated Photovoltaics (BIPV).

We pioneered flexible solar panel installations.

We led the way with the first-ever 400kWh battery backup system, even before container-based battery systems became mainstream.

And we’re revolutionizing energy cost optimization as one of the first companies in Slovakia to use spot buying while strategically managing battery storage to optimize and reduce energy costs.

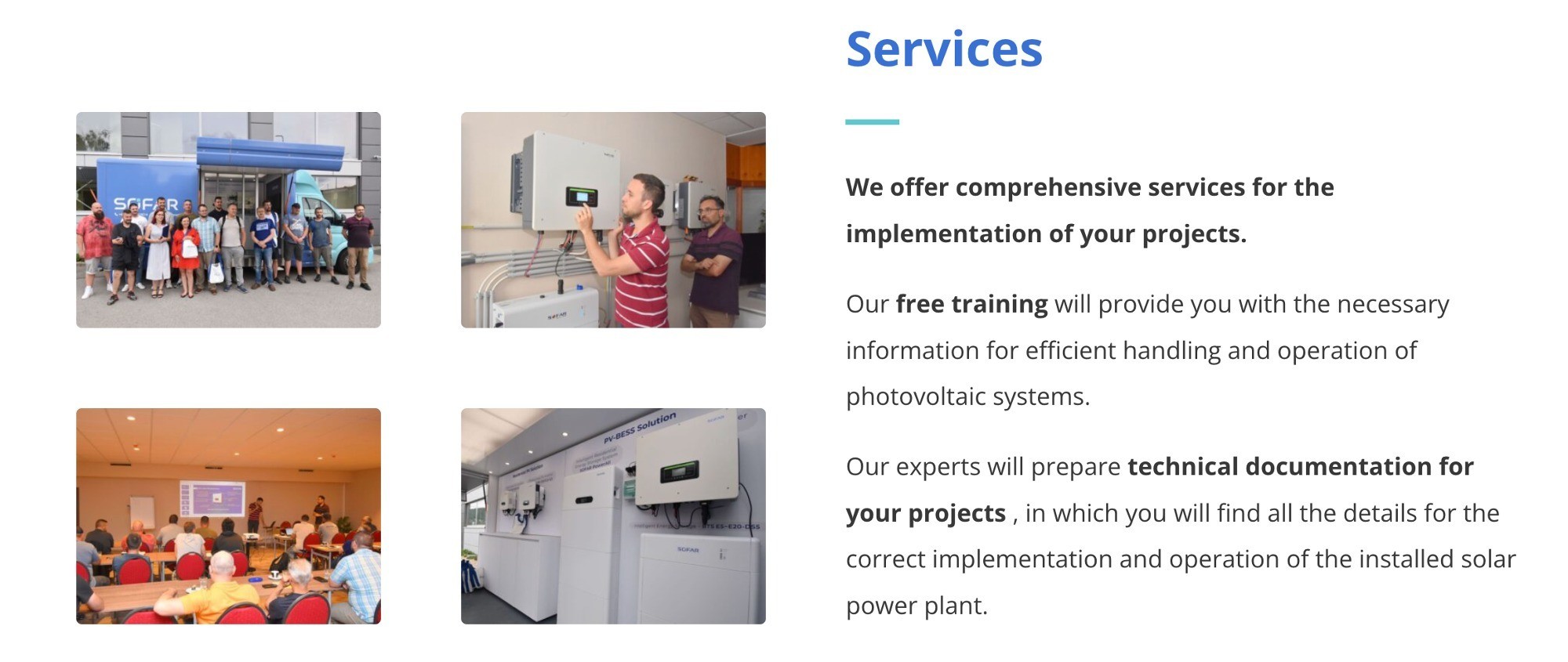

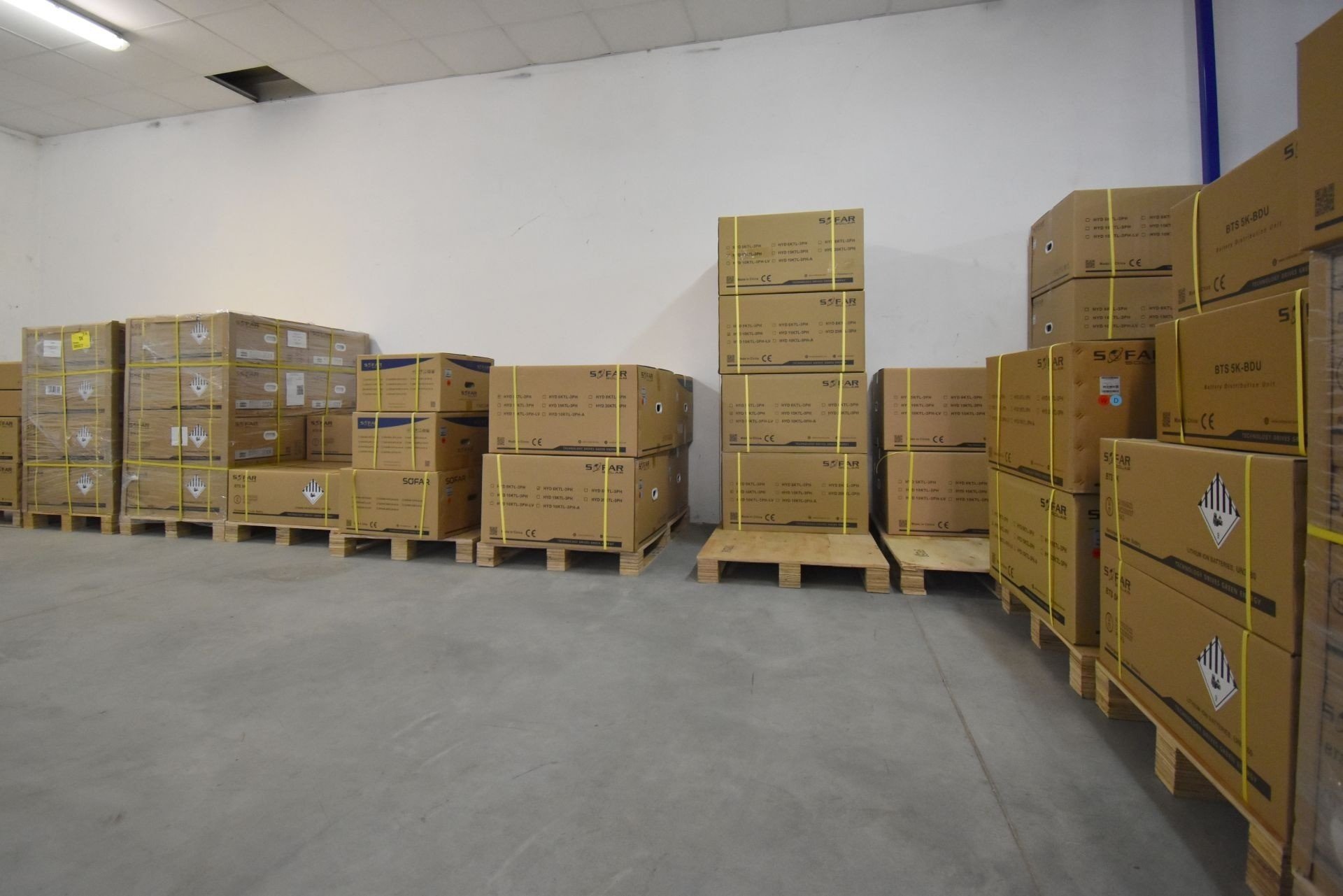

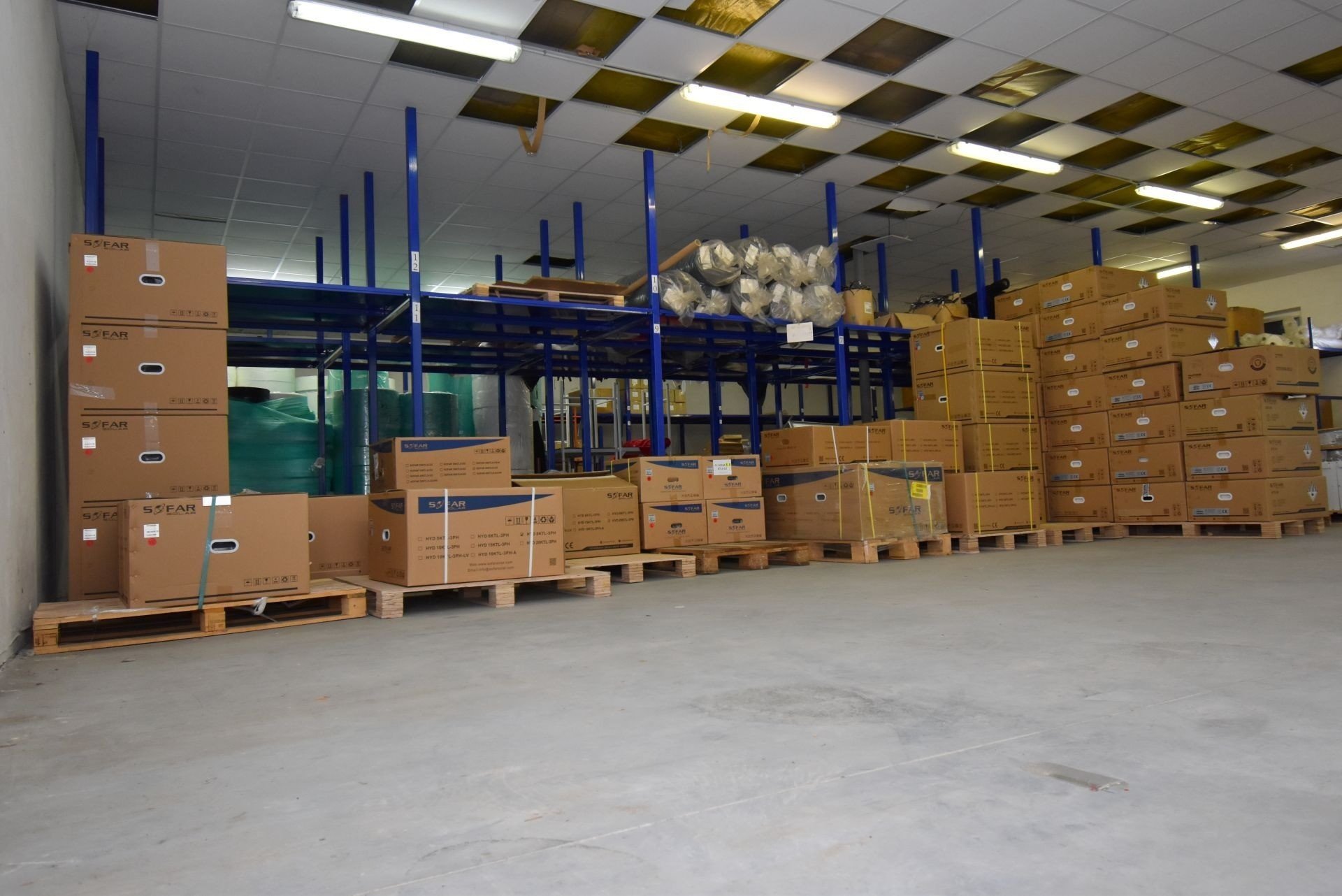

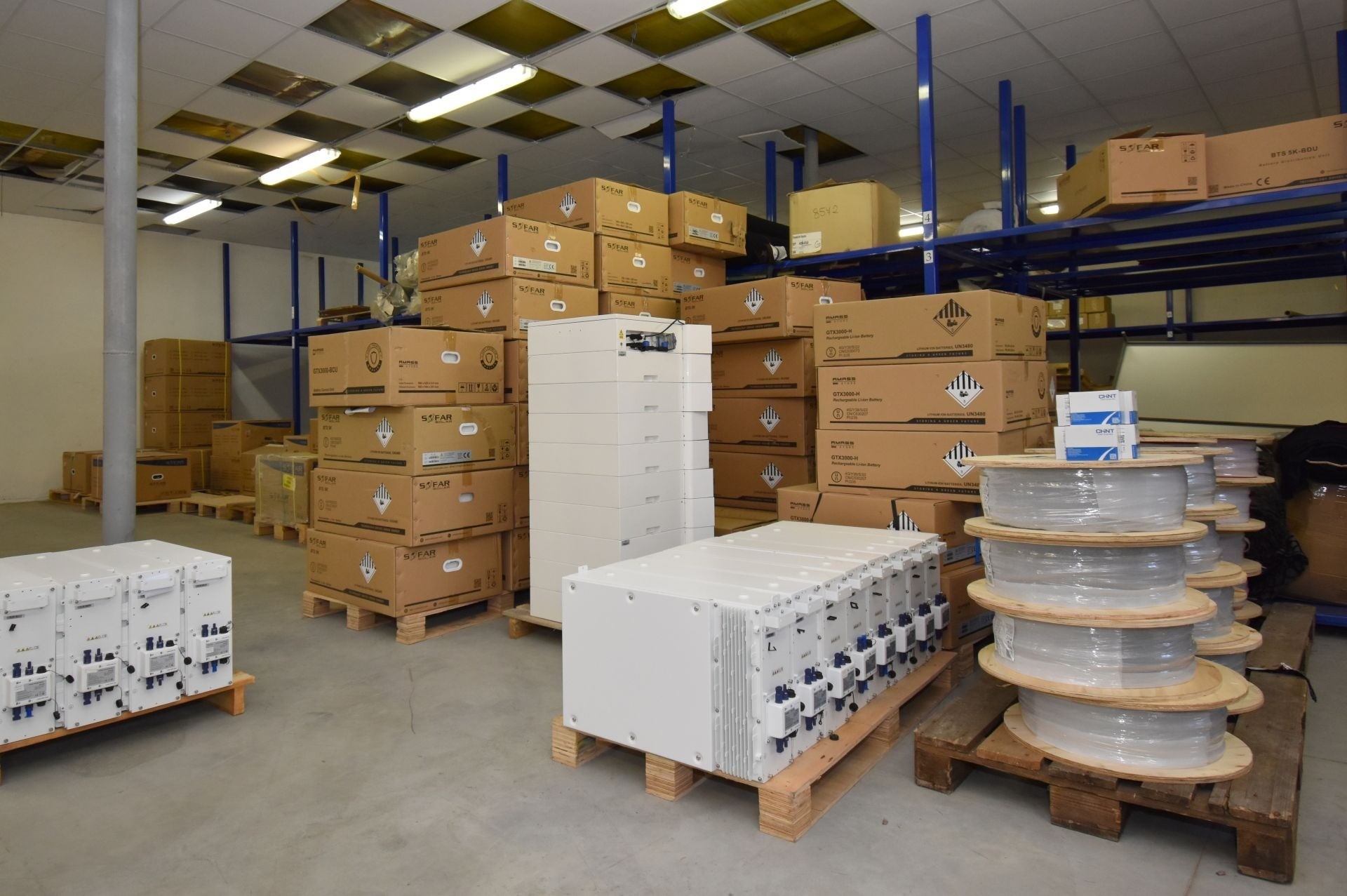

Since its establishment in 2008, Slovak Solar S.R.O. has been at the forefront of the solar industry in Slovakia, delivering over 15 years of expertise in both small-scale and extensive roofing projects and proudly holding multiple prestigious awards in renewable energy. As the exclusive distributor of SOFAR Solar inverters, batteries, and systems in the region, we provide an end-to-end service that includes comprehensive technical support and regular, cost-free training. Our dedicated warehouse enhances our professional logistics, enabling us to expedite deliveries efficiently.

Dedication to transparency and customer satisfaction is at the heart of our operations. We continuously refine our processes and offerings to meet and exceed quality, speed, and reliability expectations. Choose Slovak Solar for dependable, cutting-edge photovoltaic solutions.
We are committed to powering your success with solar innovation.
