Sunicorn MHP Series

Shenzhen Sacolar New Energy Co., Ltd.
タイプ: 独立型
出力領域: 1~5 kW
地域 : 中国 中国
注意:お問い合わせはShenzhen Sacolar New Energy Co., Ltd..に直接に送信されます。

説明:

1. Rated power 1KW to 5KW
2. MPPT solar charge controller
3. Power factor 1
4. Pure sine wave AC output
5. Overload, short circuit and deep discharge protection
6. Configurable AC/ solar input priority via LCD setting
7. Compatible to mains voltage or generator power
8. WIFI/ GPRS remote switch and monitoring
9. Parallel operation for Sunicorn MHP 4KW/5KW

製品の特徴

型式
Sunicorn-MHP 1KVA Sunicorn-MHP 2KVA Sunicorn-MHP 3KVA Sunicorn-MHP 4KVA Sunicorn-MHP 5KVA
入力特性
定格入力電力
1 kW 2 kW 3 kW 4 kW 5 kW
定格入力電圧
100 V 100 V 145 V 145 V
変換可能最低電圧
30 V 30 V 60 V 60 V
最大電力範囲
30~80 V 30~80 V 60~115 V 60~115 V
出力特性
定格出力電力
1 kW 2 kW 3 kW 4 kW 5 kW
出力電圧範囲
90~280 V 90~280 V 90~280 V 90~280 V 90~280 V
通常出力電圧
230 V 230 V 230 V 230 V 230 V
定格出力周波数
50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz 50, 60 Hz
電力変換効率
93 % 93 % 93 % 93 % 93 %
一般的なデータ
外形寸法 (高さ/幅/奥行)
316x240x95 mm 355x272x100 mm 385x272x100 mm 468x295x120 mm 468x295x120 mm
質量
5.2 kg 7.5 kg 7.5 kg 11 kg 11 kg
作動時温度 -0 ~ +55 ℃
保護等級 IP20
相対湿度 5-95 %
冷却方式 ファン
通信仕様 RS 232, USB
ディスプレイ LCD, LED
保護機能
保護機能 短絡保護機能,過負荷保護機能,過電圧保護機能,過電流保護機能,オーバーヒート保護機能,漏電遮断機能,逆極性保護機能
認証
PDF
メーカーのPDFをダウンロードします

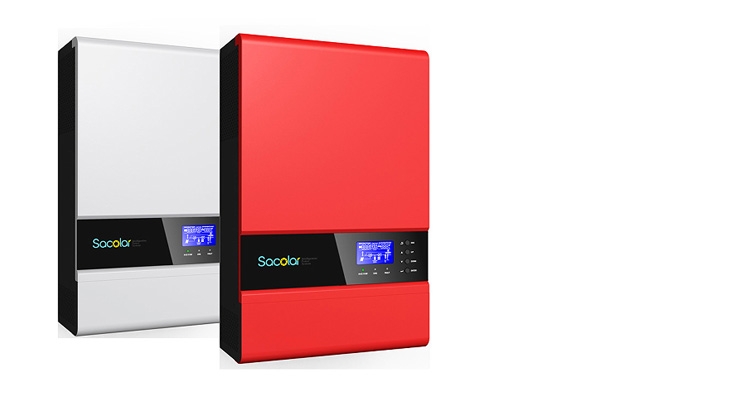

Sunicorn MHP series off grid solar inverter is integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.

Sunicorn series inverter is available for motoring access. Customer can monitor the PV system on web or cellphone anytime anywhere.

 Rated power 1KVA to 5KVA
 MPPT solar charge controller to maximize the solar output
 High frequency inverter with small size and light weight
 Pure sine wave AC output
 Overload, short circuit and deep discharge protection
 Configurable AC/ solar input priority via LCD setting
 Compatible to mains voltage or generator power
 WIFI/ GPRS remote monitoring (optional)
 Parallel operation for Sunicorn MHP 5KW, parallel 6pcs at most


System matching recommendation:

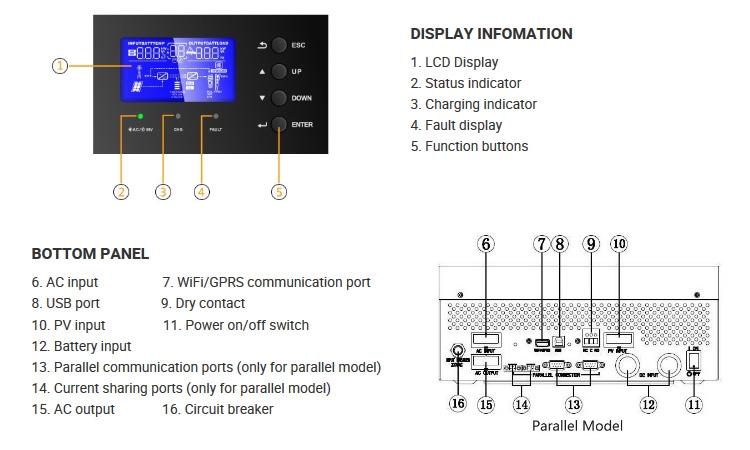

DiSPLAY INFOMATION

1. LCD Display

2. Status indicator

3. Charging indicator

4. Fault display

5. Function buttons


BOTTOM PANEL

6. AC input                   7. WiFi/GPRS communication port
8. USB port                  9. Dry contact

10. PV input                 11. Power on/off switch

12. Battery input

13. Parallel communication ports (only for parallel model)
14. Current sharing ports (only for parallel model)
15. AC output              16. Circuit breaker

Sunicorn series parallel connecting:

Sunicorn MHP series, with MPPT controller:

Model
Sunicorn MHP-2KVA
Sunicorn MHP-3KVA
Sunicorn MHP-4KVA
Sunicorn MHP-5KVA
Input / Output Voltage
DC 24V / AC 220V
DC 24V / AC 220V
DC 48V / AC 220V
DC 48V / AC 220V
Max. PV Power
1000W
1000W
4000W
4000W
Max. PV Charge Current
25A
50A
80A
80A
AC Charge Current
30A
30A
60A
60A

Sunicorn HP series, with PWM controller:

Model
Sunicorn HP-2KVA
Sunicorn HP-3KVA
Sunicorn HP-4KVA
Sunicorn HP-5KVA
Input / Output Voltage
DC 24V / AC 220V
DC 24V / AC 220V
DC 48V / AC 220V
DC 48V / AC 220V
Max. PV Power
1200W
1200W
2400W
2400W
Max. PV Charge Current
50A
50A
50A
50A
AC Charge Current
30A
30A
60A
60A

 With a assembly of the top talents in the industry
 One of the most intelligent and automatic inverter production lines in China
 Production capacity over 100, 000 pieces a year
