LWM9BB-BiFi-166

LWM9BB-BiFi-166

Lightway Solar Energy Technology Ltd
価格:
価格 ¥22.8 / Wp より
セルタイプ: 両面受光型
出力領域: 6.01~6.22 Wp
地域: 中国 中国
注意:お問い合わせはLightway Solar Energy Technology Ltd.に直接に送信されます。

説明:

1. PERC+SE Technique

2. Both sides can generate electricity

3. High conversion efficiency, average cell efficiency is 22.3%, highest efficiency is 22.8%

4. Long term efficiency, stability and excellent reliability

5. Low breakage rate and Low LID rate

6. Good color uniformity

製品の特徴

型式
LWM9BB-BiFi-6.01W LWM9BB-BiFi-6.03W LWM9BB-BiFi-6.06W LWM9BB-BiFi-6.09W LWM9BB-BiFi-6.11W LWM9BB-BiFi-6.14W LWM9BB-BiFi-6.17W LWM9BB-BiFi-6.20W LWM9BB-BiFi-6.22W
製品の特徴
結晶種類 両面受光型
外形寸法 166×166 mm
対角線 223±0.25 mm
電池厚み 190 ± 20 µm
表面 (-)
母線数 6
バスバー幅 0.07±0.02 mm
バスバー材質
反射防止膜 窒化シリコン
裏面 (+)
はんだパッドの番号 6
ソルダリングパッドの幅 1.7±0.1 mm
ソルダリングパッド材質
裏面電界 (BSF) アルミ
規定検査条件化での性能
最大出力 (Pmax)
6.01 W 6.03 W 6.06 W 6.09 W 6.11 W 6.14 W 6.17 W 6.2 W 6.22 W
公称最大出力動作電圧 (Vmpp)
0.576 V 0.578 V 0.58 V 0.581 V 0.583 V 0.585 V 0.587 V 0.588 V 0.59 V
公称最大出力動作電流 (Impp)
10.424 A 10.433 A 10.448 A 10.462 A 10.477 A 10.486 A 10.503 A 10.525 A 10.54 A
公称開放電圧 (Voc)
0.675 V 0.677 V 0.678 V 0.679 V 0.68 V 0.681 V 0.682 V 0.683 V 0.684 V
公称短絡電流 (Isc)
11.014 A 11.021 A 11.039 A 11.045 A 11.06 A 11.075 A 11.082 A 11.09 A 11.104 A
変換効率
21.90 % 22.00 % 22.10 % 22.20 % 22.30 % 22.40 % 22.50 % 22.60 % 22.70 %
曲線因子 (FF)
80.76 % 80.82 % 80.97 % 81.05 % 81.22 % 81.33 % 81.57 % 81.7 % 81.88 %
温度特性
温度係数(Pmax) -0.39 %/˚C
温度係数(Voc) -0.3 %/˚C
温度係数(Isc) 0.06 %/˚C

---------------------<<About Lightway>>----------------------

Lightway Solar was established in 2006,set up four companies in China mainland and owns two operating/sales companies in HongKong,with manufacturing factilities in Jiangsu/Jiangxi/Guangdong for solar cells,solar modules and solar applications etc and global marketing/sales company in Shenzhen,our current annual production capacity is over 1.0GW up to 2.5GW for solar cells and solar modules etc manufactured in CE/ISO/IEC/TUV/UL etc certificates.Lightway devoted to offering clients a one-stop shop for high quality products and already recognized by many of our clients from all over the world up to 80 countries.

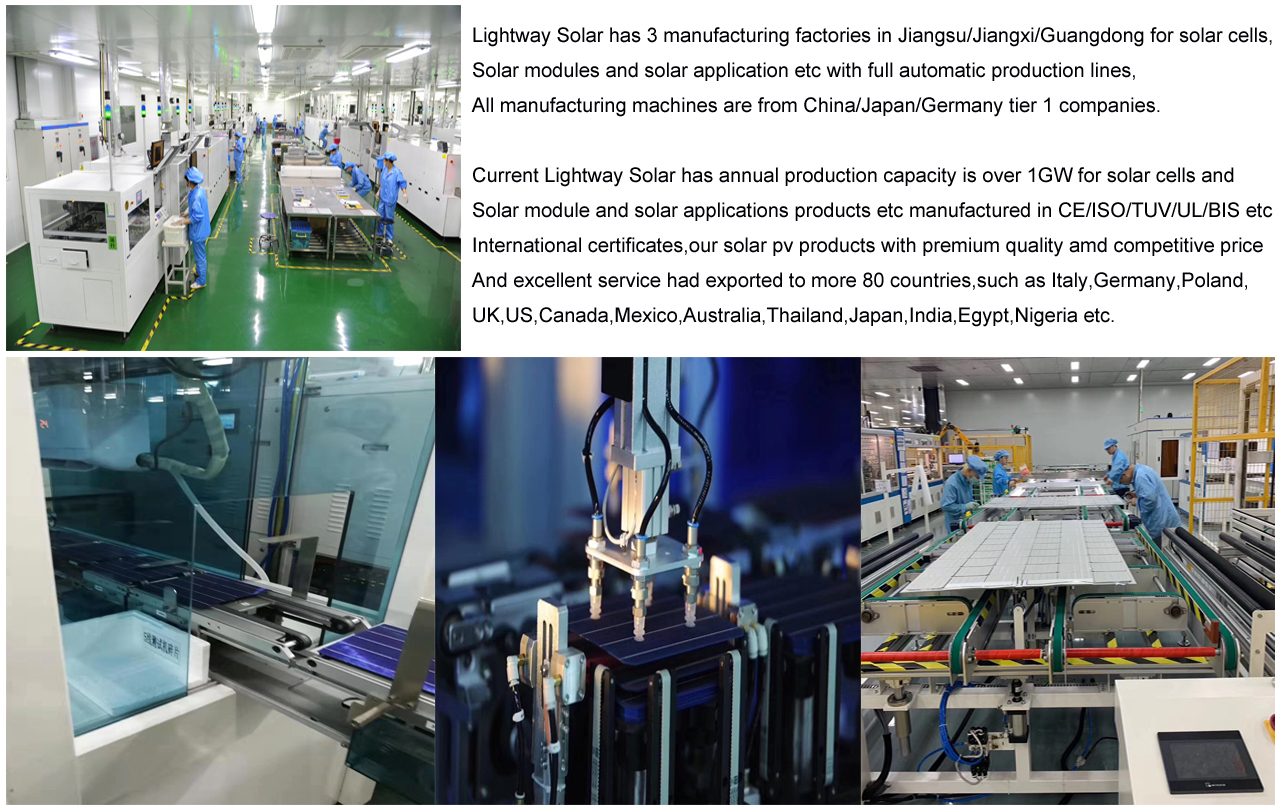

--------------------------<<Our Factory>>--------------------------

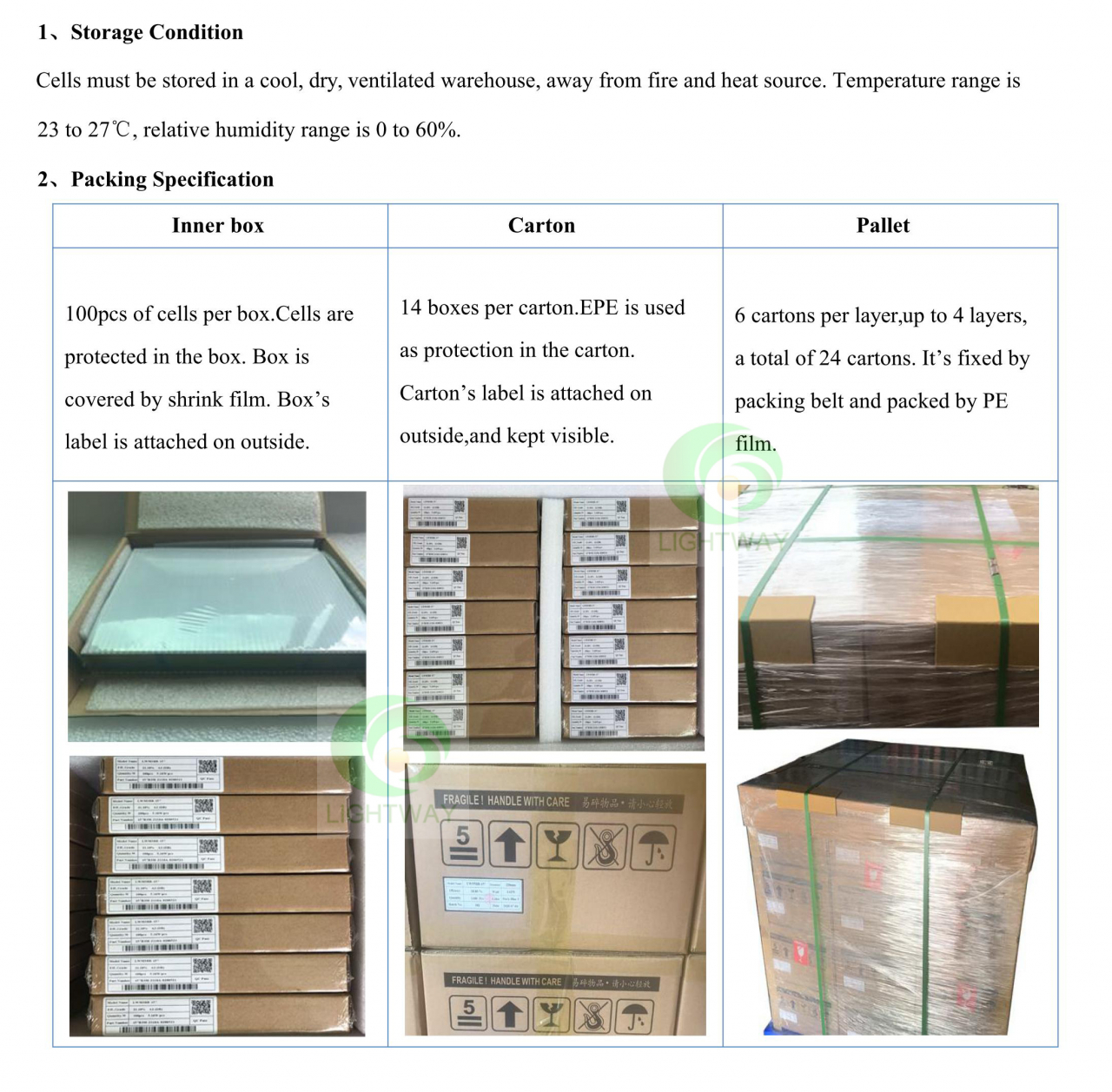

---------------------<<Storage & Package>>---------------------

-----------------<<Applications & Projects>>------------------

----------------------<<Full Certificates>>----------------------

----<<Our Flexible and Various Payment Term>>-----

Our Shipping is Fast Delivery and Safy & Accurate
